Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering

Jinan Shine International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers

    Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers
    • Buy cheap Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering from wholesalers

    Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering

    Ask Lasest Price
    Supply Ability : 500/Months
    Certification : CE/ISO
    Brand Name : snsc
    Price : negotiable
    Delivery Time : 30-45 Days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Q235A Shanmon 388 4.8L Yuchai Power Backhoe Four Wheel Loader 7000 Times Transmission Hadraulic Steering

    388 China products/suppliers Wheel Loader Directly Supplied by Manufacturer
    Product Parameters
    Specification388
    Overall
    dimension
    Overall Operating Weight8200KG
    Transport Dimension
    L*W*H mm6050*2465*3100 mm
    Wheel base2280mm
    Min.Ground Clearance300mm
    PerformancesBucket Capacity1.0
    Breakout Force47KN
    Loading Lifting Capacity2500KG
    Bucket Dumping Height2760mm
    Bucket Dumping Distance900mm
    Digging Depth52mm
    Backhoe Capacity0.3
    Max. Digging Depth4085mm
    Swing Angle of Excavator Grab180°
    Backhole Dumping Height3795mm
    Backhole max digging depth4085mm
    Max.Traction Force60KN
    EngineModel
    Yuchai YC4A105Z-T20
    TypeTurbocharging Four-Stroke
    Cylinder-Inside Diameter*Stroke4-108×132
    Rated Power75KW
    Rated Speed2200r/min
    Min.Fuel Consumption230g/km.h
    Max.Torque400N.m
    Displacement4.8L
    Steering SystemTypeHydraulic steering
    Model of Steering DeviceBZZ5-250
    Steering Angle±36°
    Min.turning radius6581mm
    AxleModelWZZD75D
    ManufacturerChina Axle
    Rated Loader of AxleF22.5t R 18.5t
    Transmission SystemGearboxMechanically operated hydraulic synchronized shifting
    ModelZL15
    Type
    Gears
    Single-stage Three Elements
    Two Gears Ahead,
    Two Gears Astern
    Hydraulic torque converterYJ290
    Inlet Pressure0.4Mpa-0. 65Mpa
    Outlet Pressure1.5Mpa-1.8 Mpa
    Cooling Method
    Oil-cooling Pressure Circulation
    Pump delivery40ml/r
    TyreFront/Rear Model14-17.5/19.5L-24
    Pressure of Front wheel0.4Mpa
    Pressure of Back Wheel0.35Mpa
    Max.Speed24Km/h
    Brake SystemService BrakeAir Over Oil Caliper Brake,
    External Type,
    Self-regulation,
    Self-balance
    Parking BrakeManual Brake
    System
    pressure
    Loading hydraulic system19Mpa
    digging hydraulic system19Mpa
    Steering hydraulic system14Mpa
    Detailed Photos

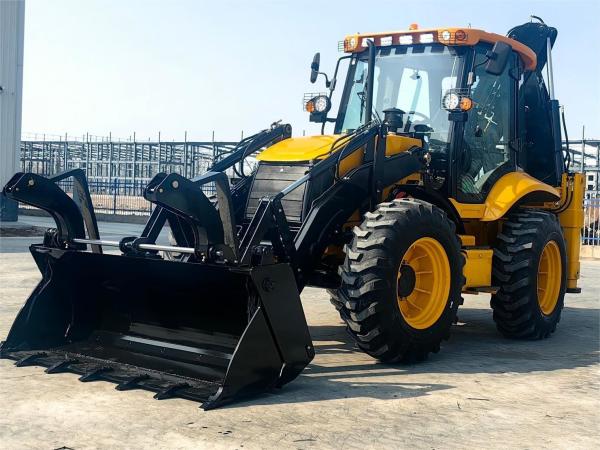

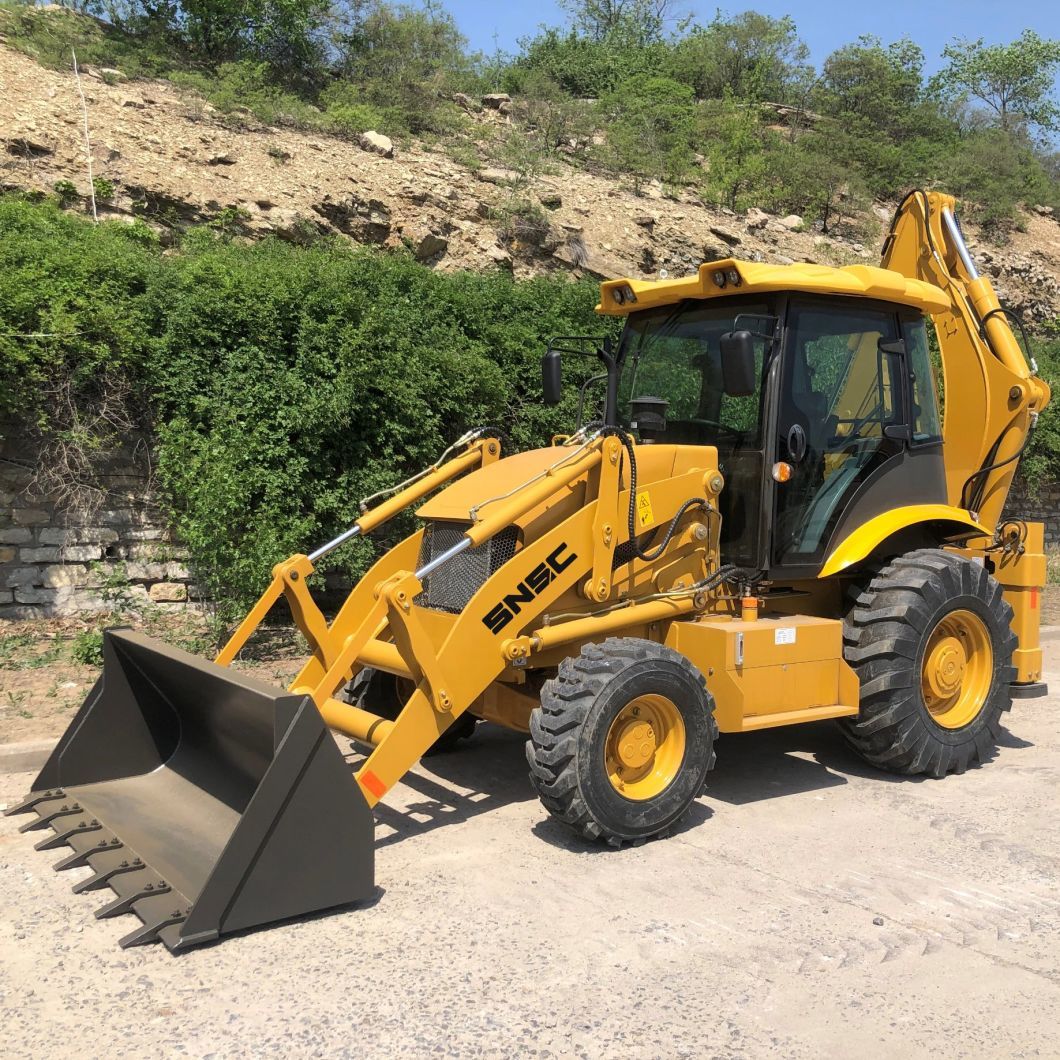

    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader
    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader

    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader
    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader
    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader
    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader

    Products Advantages

    (1) Efficient and reliable hydraulic system.
    (2) Modular radiator - 24 hours of uninterrupted operation.
    (3)High service life, high load carrying capacity and high working speed.
    (4)The high-end hydraulic system ensures stable operation and efficient operation.
    (5)A variety of auxiliary tools can be used for a variety of tasks, and the optional telescopic arm increases the working range.
    (6)The humanized and high-equipped cab improves the comfort of the operating space, provides a wide field of vision and ensures high safety.
    Shanmon 388 4.8L Yuchai Power and Hadraulic Steering Backhoe Loader

    Company Profile

    SNSC Co., Ltd was established in January 2008, which has a high-quality work team full of vigor and promise.
    Our company mainly engaged in importing and exporting loders, forklift, commercial vehicle, passenger vehicle, construction machinery and spare parts as well as channels distribution for vehicle electronics and exterior trim products.

    After six years business exploration and resource integration, our company has established long-term strategic cooperative relations with many well known domestic manufacturers successively, adhering to the concept of "profession, devotion, integrity and win-win" and aims to become "integrated service providers in vehicles and spare parts".

    At the same time, we have established the terminal service stations in the Middle East, North Africa and other regions to provide more timely and accurate service to customers.

    In 2013, in order to adapt to the needs of international market, we registered SNSC as our brand. Based on high-quality products and premium services, we persist in the management philosophy of "success with quality & service creating value", and committed to providing package solutions for customers in the vehicle industry.

    We are willing to work with you to develop the market together!

    FAQ

    Why choose SNSC?

    Q1: How long is the Warranty for SNSC product?
    A1: SNSC provides 12 months for the whole machine from on board time.

    Q2: How about the delivery time?
    A2:
    In general circumstance, we can have an immediate delivery of regular machines for our clients within 30 days, because
    we have common parts in stock,so for standard forklift we can delivery in very shot time and for some special order requests
    we can also try to delivery to you as our confirmed date.


    Q3: Can SNSC provide customized products? OEM products or ODM products?
    A4: Yes, SNSC can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard
    products, welcome your special reqeust.

    Q4: Could we request our own color for the products?
    A6: Yes, of course, you just need to offer us the RAL code.
