Specifications of 3 Ton LPG Gasoline Japan Engine Forklift:
Specifications | Unit | FL30 | ||
Features | Power type | LP/Gasoline | ||
Rated load | kg | 3000 | ||
Load center | mm | 500 | ||
Lifting height | mm | 3000 | ||
Free lifting height | mm | 145 | ||
Fork size | L*W*T | mm | 1070*125*45 | |
Mast tilt angle | Front/Rear | . | 6/12 | |
Min. turning radius | mm | 2400 | ||
Min.ground clearance | Mast | mm | 120 | |
Overhead guard height | mm | 2090 | ||
Front overhang | mm | 475 | ||
Performance | Max. travelling speed | loaded | km/h | 20 |
Max. lifting speed | loaded | mm/s | 470 | |
Max. traction force | loaded | KN | 18 | |
Max. climbing ability | % | 20 | ||
Dimension | Overall length | without fork | mm | 2695 |
Overall width | mm | 1230 | ||
Mast lowered height | mm | 2055 | ||
Mast extended height | mm | 4265 | ||
Chassis | Tyre | Front | 28*9-15-12PR | |
Rear | 6.50-10-10PR | |||
Wheel base | mm | 1700 | ||
Wheel thread | Front/Rear | mm | 1000/970 | |
Weight(without load) | kg | 4350 | ||
Powertrain | Battery | V/AH | 12/90 | |
Engine | Model | nissan K25 | ||
Rated power | km/r.p.m | 37.4/2300 | ||
Rated torque | Nm/r.p.m | 176.5/1600 | ||
No. cylinder | 4 | |||
Bore x stroke | mm | 89X100 | ||
Displacement | L | 2.488 | ||
Fuel tank capacity | L | 70 | ||
Transmission/shift | 1/1 automatic transmission | |||
Operation pressure | Mpa | 17.5 |

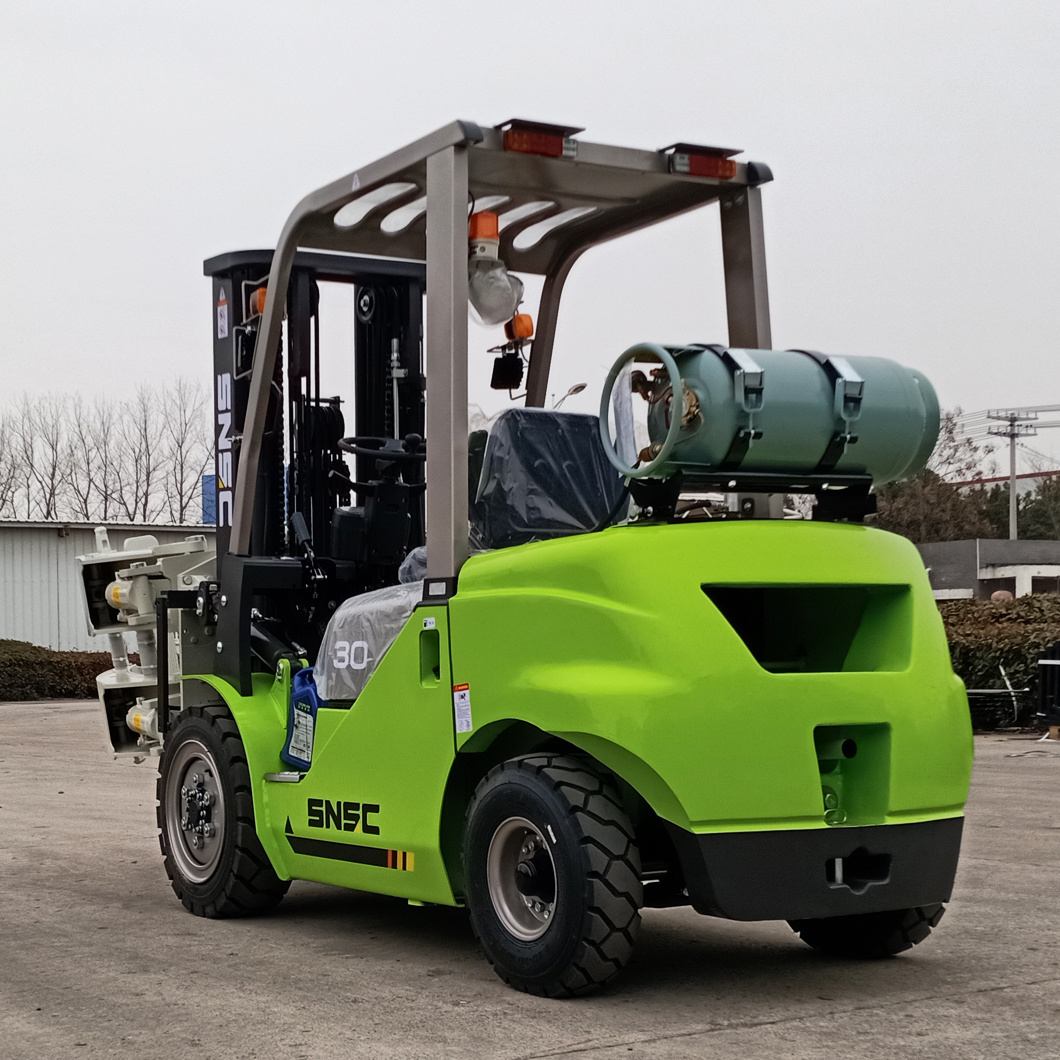

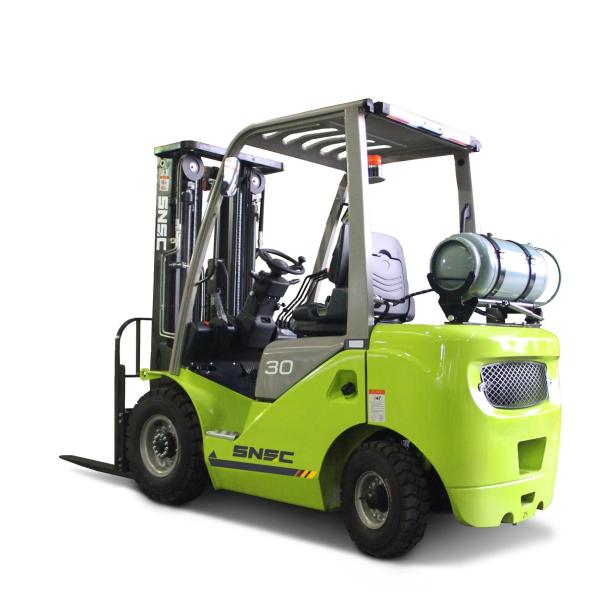

Detailed images of 3 Ton LPG Gasoline Japan Engine Forklift:
One 20ft container can hod 2 units, one 40ft container can hold 4units.
Our factory has 4 modern production workshops, has more than 100
sets international leading level of the large and medium-sized
equipments, world's advanced research facilities, intelligent
detection system. Our forklifts got certifications of ISO 9001, CE,
EPA, GOST and so on. At present, it has formed three categories
including internal combustion, electric, and storage, a total of
209 models of forklift products. Our products have been widely used
in paper making, automobile, tobacco, logistics, stone material and
other industries.
Our factory was established in 2010, covering area of 130,000 square meters, has more than 400 employees. Among them, there are nearly 80 engineers, 60 office staff and 300 front-line workers. The annual output is 10,000 sets forklifts, the daily output is 40 units, and the export volume is 3,000 units. Our products have been exported to more than 130 countries and areas such as UK, France, Spain, Russia, Australia, USA, Mexico, South America, Southeast Asia, Middle East, Africa, etc
![]() |
