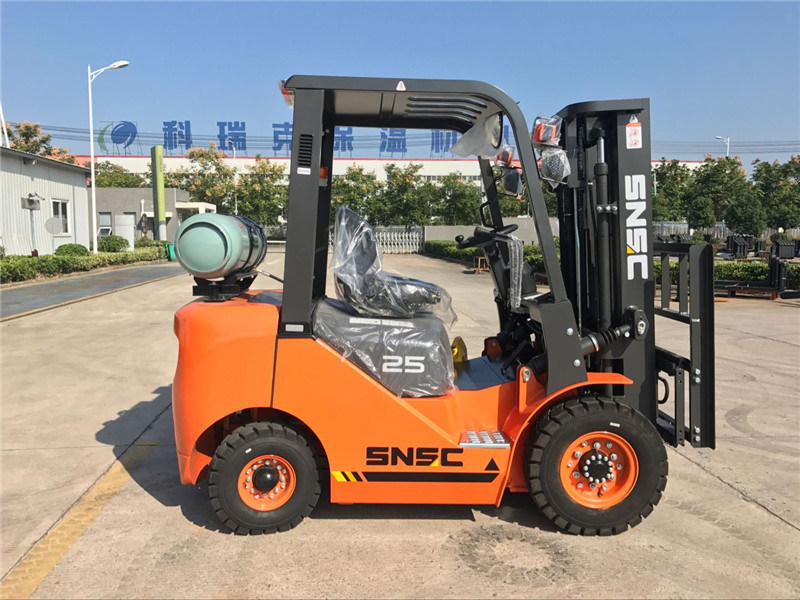

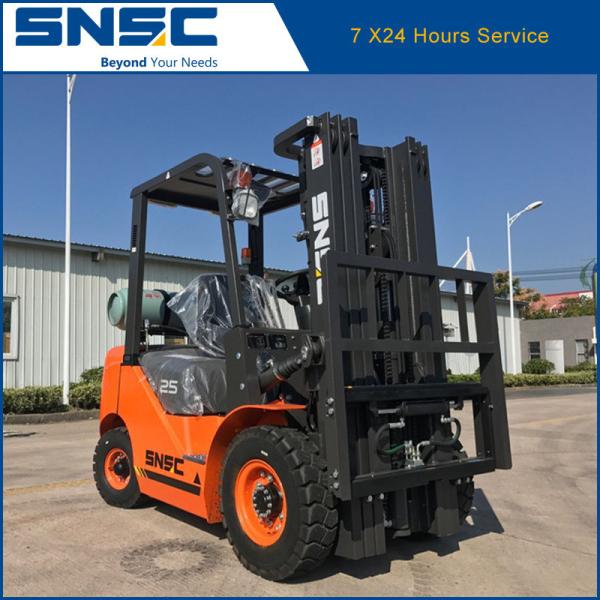

New brand SNSC LPG gas powered fork lift 2500kg

Description:
(1)Auto electric hydraulic transmission by TCM technology,just use
your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)USA Eaton steering gear;
(4)USA Impco converter;
(5)LED light, with long durability time;
(6)Copper Water tank, with better heat radiation;
(7)Red/yellow/green colors for your reference.
(8)Optional parts:Japan Nissan engine,Side shifter,Double front
tires,Solid tire,Double air filter,Vertical exhaust,fork
extension,Cab,Fork positioner.
(9)Container Package Method: 3.5 ton gas forklift package:20GP can
hold 3 units,40GP can hold 6 units.

Specifications | Unit | FL25 |
1 | Characteristics | Power | - | LPG/Gasoline |
2 | Rated Capacity | kg | 2500 |
3 | Center of load | mm | 500 |
4 | Lifting height | mm | 3000 |
5 | Free lifting height | mm | 135 |
6 | Forks L×W×H | mm | 1070x122x40 |
7 | Tilt Forward/Backward | . | 6/12 |
8 | Min.turning radius | mm | 2240 |
9 | Min.ground clearance(Mast) | mm | 110 |
10 | Overhead guard height | mm | 2120 |
11 | Front overhang | mm | 473 |
12 | Performance | Max.traveling speed(loaded) | km/h | 19 |
13 | Max.lifting speed(loaded/empty) | mm/s | 470/510 |
14 | Drawback pull/Grade ability | KN/% | 17/20 |
15 | Dimensions | Overall length (without fork) | mm | 2570 |
16 | Overall width | mm | 1175 |
17 | Mast lowered height | mm | 1990 |
18 | Mast extended height | mm | 4000 |
19 | Chassis | Tire | Front | - | 7.00-12-12PR |
20 | Rear | - | 6.00-9-10PR |
21 | Wheelbase | mm | 1600 |
22 | Tread width | Front/Rear | mm | 970/970 |
23 | Curb weight | None-load | kg | 3750 |
24 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
25 | Engine | Model | - | GQ491 |
26 | Rated power | kw/r.p.m | 36/2400 |
27 | Rated torque | Nm/r.p.m | 155/1800 |
28 | Cylinder amount | - | 4 |
29 | Bore×Stroke | mm | 91×86 |
30 | Displacement | - | 2.237 |
31 | Fuel tank | L | 60 |
32 | Transmission | - | 1/1 automatic transmission |
33 | Working pressure | MPa | 17.5 |

Spare Parts With Delivery:
To guarantee every diesel forklift customer has a good forklift
using feeling and longer using life,
we send some spare parts for free with every forklift delivery, eg:
filters, seal and related
In future, if customers need any spare parts, we will give
reflection within 24hours,
so please be relax, we will never leave our customers in anxious
situation, especially spare parts.

Certificate:
All LPG Gas fork lift truck SNSC 3.5 ton forklift have passed all
kinds of international certificates,
eg: CE, especially, our CE certificate is made in Turkey.

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton
diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to
3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to
3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet
Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric
Tractor(QB).

Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with
130,000 square meters production area, 30,000 units production
capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production
time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and
benifits. Welcome to contact us with your diesel forklift demands.
Our Service:
We are dedicated in first class service and 7x 24 hours response
time - Fighting for your safety use by our expertise
We adhere to the spirit of "safety" "high-efficiency" "expertise"
and "responsibility", aiming to help you solve all forklift
problems in the using. To achieve this, we offer you all kinds of
high-efficiency services:calling service, training service,
maintenance service, agent service. In a world, we are responsible
to you and our forklift all the time.
AFTER-SALE SERVICE and MAITENANCE
We have a professional forklift after-sale service team. We can
guarantee you the 24-hour calling rapid-reaction mechanism. Please
contact us freely, if any questions.
Our forklifts are all well-designed and strictly tested. If any
forklift maintenance problem you can not handle, we can also offer
forklift training and maintenance services in our factory field or
at your site.Your requirements will be handled promptly and
appropriately.
Our SNSC forklift has officially build up the cooperation
relationship with 22 partners and provided the best and fast
forklift service for the customers all over the world. Besides,We
have offices in Algeria, Brazil, Britain and South Africa.
WARRANTY TIME
The forklift warranty period for SNSC Forklift is 18 months or 2000
working hours begins from the forklift arrival date of oversea
port, depends on which come first.
FAQ:
1. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan,
etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, Ecuador, etc.
Africa: South Africa, Ethiopia, Libya, etc.
2.What are our advantages compared with other
manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for
supporting spare parts, like engines, bridge, transmissions, and
many parts designed and produced by ourselves, always adapting the
best materials.
2)Competitive Price: Concentration of mechanized production in
large quantities reduce production costs to ensure that our price
is competitive.
3)Service Team: First, our sales managers are working 24 hours one
day, ready to answer your questions at any time. Second,
professional maintenance team with senior technicians, ready to
provide support services to users and dealers. Most problems can be
solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with
10 working days in factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production,
70% balance shall be paid before delivery or against the copy of
original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses"
can be accepted.
4.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS
2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW
etc.
5.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can
go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam,
Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by
international courier service, such as DHL, TNT, EMS or other air
transportation.
6. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through
one year, we only adjust our price based on two situations:
1)The rate of USD
2)The price of material
Other questions, please contact Nicole.
