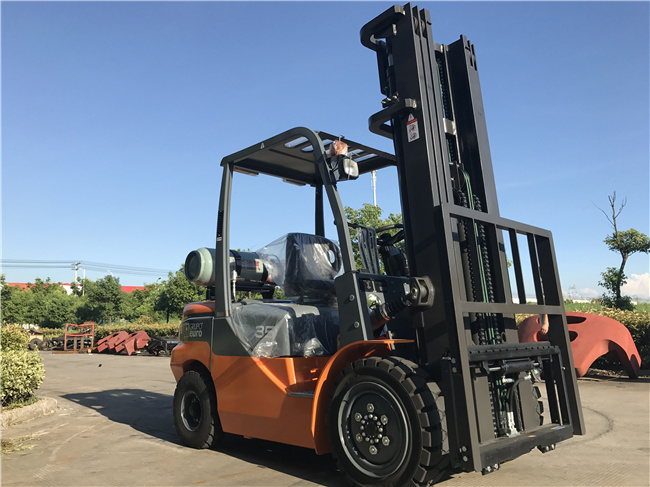

New 3.5t Gas Forklift with Nissan Engine
Specifications of LPG/Gasoline/Gas/Petrol/Propane Forklift| No. | Specifications | Unit | FL30 |
| 1 | Characteristics | Power | | LPG/Gasoline |
| 2 | Rated Capacity | kg | 3000 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 145 |
| 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 2600 |
| 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | Overhead guard height | mm | 2170 |
| 11 | Front overhang | mm | 545 |
| 12 | Perf | Max.traveling speed(loaded) | km/h | 20 |
| 13 | Max.lifting speed (loaded/empty) | mm/s | 470/520 |
| 14 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 15 | Dimensions | Overall length (without fork) | mm | 2825 |
| 16 | Overall width | mm | 1230 |
| 17 | Mast lowered height | mm | 2065 |
| 18 | Mast extended height | mm | 4260 |
| 19 | Chassis | Tire | Front | | 28×9-15-12PR |
| 20 | Rear | | 6.50-10-10PR |
| 21 | Wheelbase | mm | 1800 |
| 22 | Tread width | Front/Rear | mm | 1000/970 |
| 23 | Curb weight | None-load | kg | 4250 |
| 24 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |

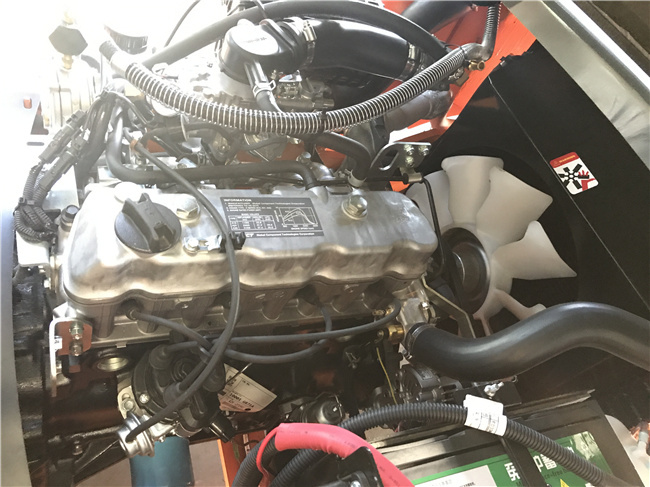

| 25 | Engine | Model | | Nissan K25 |
| 26 | Rated power | kw/r.p.m | 37.4/2300 |
| 27 | Rated torque | Nm/r.p.m | 176.5/1600 |
| 28 | Cylinder amount | | 4 |
| 29 | Bore×Stroke | mm | 89*100 |
| 30 | Displacement | | 2.448 |
| 31 | Fuel tank | L | 70 |
| 32 | Transmission | | 1/1 Automatic |
| 33 | Working pressure | MPa | 17.5 |
2-Stages 3Meters Full Free Lifting Height Mast, Side Shifter
Function,
Japan Shimadzu Hydraulic Pumps&Multitandem ValvasSearch Mariah Tang Forklift on YouTube, Many VIDEO for your review.
Configurations on Your Forklift| SNSC Forklift Standard Configurations |
| Hydraulic System Pumps&Multitandem Valves | Shimadzu - made in Japan |
| Steering Gear (Redirector) | EATON made in America |
Lamps
(steering lamp,revers light,front/rear lamp) | All LED Lamps |
| Lamp Guard | Protect lamps at any moment |
| Radiator Assy | Copper material |
| Cylinder Dust Cover | Prevent dust during cylinder work |
| Overhead Guard | Ramjet Waterproof |
| Three-pivot Wide-angle Rearview Mirror | Angel View |
|
| SNSC VIP Customize&Design for Your Work Condition, Optional |
| Engine (made in Japan) | Nissan K25 |
| Mast 3m to 7m lifting, 2-stage&3-stages | 3-stages full free mast for indide container |
| Solid Tires | prolong service life |
| Double Front Tires | increase stability, design for higher lifting height |
| Fork Length | customize according to pallet size in local |
| Fork Sleeves | help one forklift service different pallets,high-efficiency |
| Backrest Dimension | customize for Empty Lifting Container |
| Side Shifter Function | to adjust fork more convernient to aim at pallet faster |
| Cabin for special climate country/area | A/C(cool)&Heater(hot) for your choice |
| Color&Logo | absolutely meet your requirements |
| Double Filter | design for dusty work condition |
SNSC Forklift Factory Service1.Certificates
all our Forklift have passed all kinds of international
certificates, such as CE, ISO, GHOST Certificates.Forklifts'
Quality definitely guaranteed.
2.Clearance Custom Documents
we have professional experienced operator to prepare special
documents according to your country custom,such as CIQ,SASO,CCPIT
CI,EPA...
3.Spare Parts
professional engineer solve questions with you together,confirm
telephone,photos,video and directly video on wechat to confirm
exact problem, then express parts by DHL, arrive at your hands
within 3 days.
4.Maintenance&Repair Manual
attach manuals with forklift together for you and workers review.
SNSC Factory Production Line & Strict Trial
.
professional technology workers preparing mini parts from steel
plate
. welding robot & workers' technology for oil tank and other
details on forklift
. every parts,frame passed six times paint,finish bright color
. quality department do tires,mast angel,brake
line,climbing,lifting trial running
. Please check VIDEO on YOUTUBE, search Mariah Tang Forklift
Packaging & ShippingTool Box, Forklift Catalogue, Gloves, Manuals of Operation and
Maintenance, Fork, Spare Parts, we will send with forklift
together.
For 2.5 Tons Diesel Forklift,shipping terms depends on quantity.
1 Unit we choose LCL( less than container load) in Shanghai Port;
2 Units and More, we choose shipping by Container.
20'GP can hold 3 Units, 40'GP can hold 4 Units
FAQ1. Which countries do we export to?
Asia: Vietnam, India, Indonesia, Pakistan, Kazakhstan, Uzbekistan,
etc.
Europe: Russia, Belarus, Ukraine, Lithuania, Saudi Arabia, etc.
South America: Brazil, Chile, Paraguay, Argentina, etc.
Africa: South Africa, Ethiopia, Libya, etc.
2.What are our advantages compared with other
manufacturers/factories?
1)Reliable Quality: Carefully select regular manufacturers for
supporting spare parts, like engines, bridge, transmissions, and
many parts designed and produced by ourselves, always adapting the
best materials.
2)Competitive Price: Concentration of mechanized production in
large quantities reduce production costs to ensure that our price
is competitive.
3)Service Team: First, our sales managers are working 24 hours one
day, ready to answer your questions at any time. Second,
professional maintenance team with senior technicians, ready to
provide support services to users and dealers. Most problems can be
solved within 24 hours.
4)Fast Delivery: Under normal circumstances, we can delivery with
10 working days in factory after receiving pre-payment.
3.Which payment terms can we accept?
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production,
70% balance shall be paid before delivery or against the copy of
original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight without "soft clauses"
can be accepted.
4.Which INCOTERMS 2010 we can work?
As a professional experienced supplier, we can handle all INCOTERMS
2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW
etc.
5.What logistics ways we can work for delivery?
1) For most Europe, South America and Africa etc. countries we can
go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam,
Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by
international courier service, such as DHL, TNT, EMS or other air
transportation.
6. How long is the validity of our quotation?
As a reliable supplier, basically our price remains stable through
one year, we only adjust our price based on two situations:
1)The rate of USD
2)The price of material
SNSC Forklift Range
1.Diesel Forklift Truck Range from 1 to 10tons;
(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2.Electric Forklift Truck Range from 1.5 to 3.5tons; (FB15, FB20,
FB25, FB30, FB35)
3.LPG&Gasoline Forklifts Range from 1.5 to 3.5tons; (FL15,
FL20, FL25, FL30, FL35)
4.Warehouse Logistic Forklift 1 to 3tons Reach Truck / Pallet Truck
/ Stacker ; (YB16,YB20,DB16,DB20)
