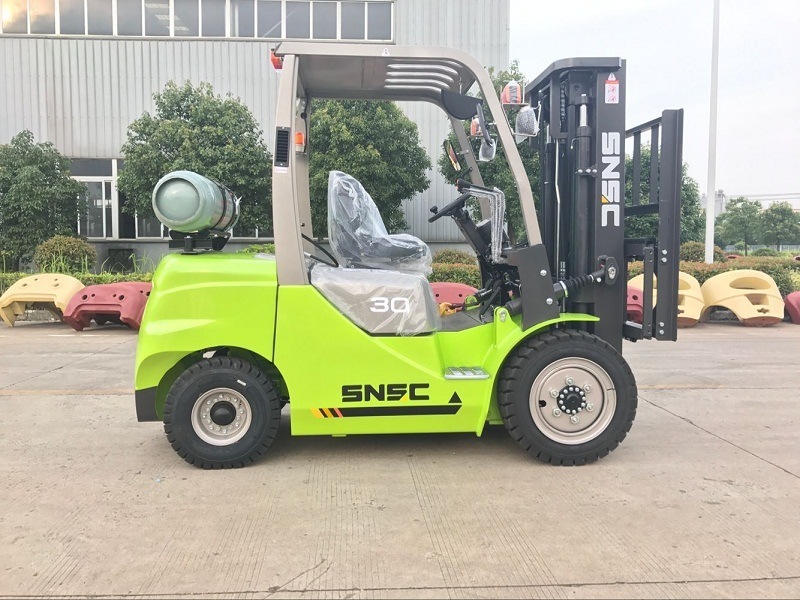

Main Features for SNSC CHARIOT ELEVATEUR LPG GASOLINE POWERED 3
TONS FORKLIFT TRUCK 1) with powerful original Japan NISSAN K25
gasoline engine, you can get engine parts very easy.
2) with auto electric hydraulic transmission by finger with TCM
technology, just use your finger that can achieve the forklift's
forward and backward;
3) FL30 gas lifter truck forklift with USA IMPCO converter;
4) with CE, ISO, GHOST certificates, quality is guaranteed;
5) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand
hydraulic pump and muti-way control valves, which can guarantee our
snsc 3t forklift's best performance;
6) installed famouse USA EATON brand steering gear, which makes our
forklift have longer working life;
7) SNSC FL30lpg gasoline forklift truck can install different
attachments to help your work, like paper roll clamp, side shifter,
full free container mast, bale clamp, button clamp, block clamp,
cabin, etc.
| mast type | lifting height |
| standard duplex mast | 3m-4m |
| duplex full free mast | 3m-4m |
| triplex full free mast | 3.6m/4m/4.5m/5m/5.5m/6m/7m |
Specifications of SNSC LPG GASOLINE POWERED 3 TONS FORKLIFT TRUCK
This is our standard 3ton GAS forklift techincal specifications.
We also can customized the fork lifter according to our customer's
demands and working conditions.
| STANDARD FD30 DIESEL FORKLIFT SPECIFICATIONS | |
| No. | Specifications | Unit | FL30 |
| 1 | 1 | Characteristics | Power | | lpg gasoline |
| 2 | 2 | Rated Capacity | kg | 3000 |
| 3 | 3 | Center of load | mm | 500 |
| 4 | 4 | Lifting height | mm | 3000 |
| 5 | 5 | Free lifting height | mm | 145 |
| 6 | 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | 8 | Min.turning radius | mm | 2600 |
| 9 | 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | 10 | Overhead guard height | mm | 2170 |
| 11 | 11 | Height from seat to overhead guard | mm | 480 |
| 12 | 12 | Front overhang | mm | 545 |
| 13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 20 |
| 14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 15 | 15 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 16 | 16 | Dimensions | Overall length (without fork) | mm | 3895 |
| 17 | 17 | Overall width | mm | 1230 |
| 18 | 18 | Mast lowered height | mm | 2065 |
| 19 | 19 | Mast extended height | mm | 4260 |
| 20 | 20 | Chassis | Tire | Front | | 28×9-15-12PR |
| 21 | 21 | Rear | | 6.50-10-10PR |
| 22 | 22 | Wheelbase | mm | 1800 |
| 23 | 23 | Tread width | Front/Rear | mm | 1000/970 |
| 24 | 24 | Curb weight | None-load | kg | 4250 |
| 25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | 26 | Engine | Model | | original japan nissan k25 engine |
| 27 | 27 | Rated power | kw/r.p.m | 37.4/2300 |
| 28 | 28 | Rated torque | Nm/r.p.m | 176.5/1600 |
| 29 | 29 | Cylinder amount | | 4 |
| 30 | 30 | Bore×Stroke | mm | 89×100 |
| 31 | 31 | Displacement | | 2.488 |
| 32 | 32 | Fuel tank | L | 70 |
| 33 | 33 | Transmission | 1/1 automatic transmission |
| 34 | 34 | Working pressure | MPa | 17.5 |
SNSC Forklift WITH Different Lifting Capacity When in Different
Lifting Height:
| Duplex mast | | | | | | | |
| Capacity |
|
| Lifting height | 1.5T | 1.8T | 2T | 2.5T | 3T | 3.5T | 3.8 |
| Single tire | Single tire | Single tire | Single tire | Single tire | Single tire | |
| Mm | Kg | Kg | Kg | Kg | Kg | Kg | Kg |
| 2000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 2500 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 3000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 3300 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 3500 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 3700 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 4000 | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 | 3800 |
| 4500 | 1300 | 1400 | 1800/*1900 | 2200/*2400 | 2600/*3000 | 2850/*3500 | 3150/*3800 |
| 5000 | 950/*1150 | 1150/*1350 | 1300/*1700 | 1450/*2200 | 2100/*2850 | 2400/*3150 | 2700/*3450 |
| 5500 | *1000 | *1050 | *1500 | *1700 | *2400 | *2700 | *3000 |
| 6000 | *650 | *850 | *1300 | *1400 | *2000 | *2300 | *2600 |
Our Factory Strength Introduction
We, SNSC fork lifter factory, are top 3 fork lifter montacargas
manufactures and top 20 in the world. with 130,000 square meters
production area, over 500 employees,30,000 units forklifter diesel
truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifts.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality fork lifters to our customers
from all over the world.
SNSC brand FL30 3tons lpg gasoline powered FORKLIFT TRUCK SHIPMENT
SOLUTIONS:
Our 3ton LPG GASOLINE forklift can be delivered by container or
ro-ro shipment.
One 20'GP containr can hold 2 units 3tons gasforklifts;
one 40'GP container can hold 4 units 3ton petrol engine forklift
trucks.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our
customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
