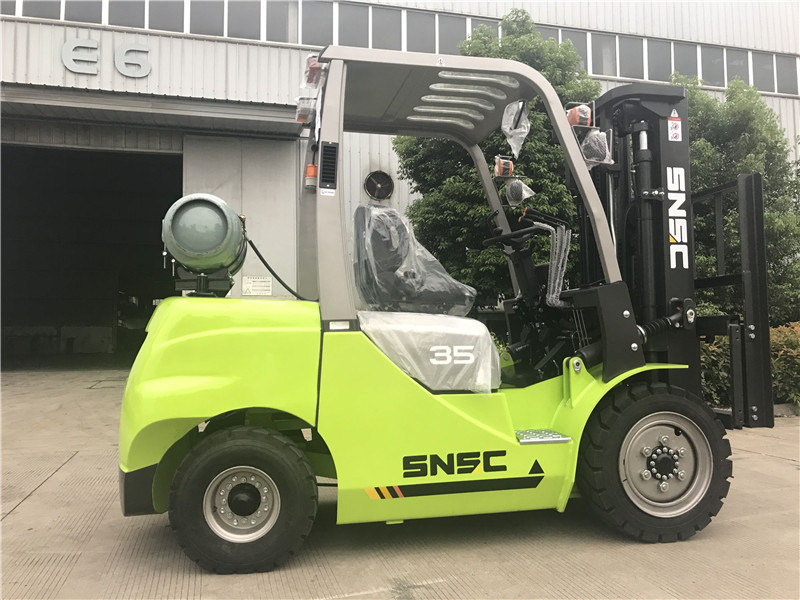

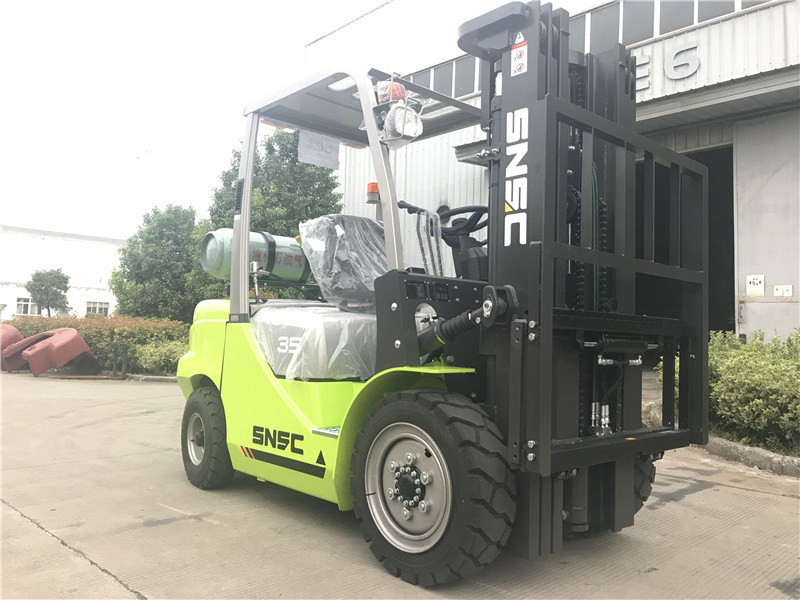

Main Features for SNSC CHARIOT ELEVATEUR LPG GASOLINE POWERED 3.5
TONS FORKLIFT TRUCK 1) with powerful original Japan NISSAN K25
gasoline engine;
2) with auto electric hydraulic transmission by finger with TCM
technology, just use your finger that can achieve the forklift's
forward and backward;
3) with USA IMPCO converter;
4) with CE, ISO, GHOST certificates, quality is guaranteed;
5) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand
hydraulic pump and muti-way control valves, which can guarantee our
snsc 3.5t LPG forklift's best performance;
6) with USA EATON brand steering gear, which makes our snsc
forklift have longer working life;
7) SNSC FL35 lpg gasoline forklift truck can install different
attachments to help your work, like paper roll clamp, side shifter,
full free container mast, bale clamp, button clamp, block clamp,
cabin.
Specifications of SNSC CHARIOT ELEVATEUR LPG GASOLINE 3.5 TONS
FORKLIFT TRUCK
| STANDARD FL35 LPG GASOLINE FORKLIFT SPECIFICATIONS |
| No. | Specifications | Unit | FL35 |
| 1 | 1 | Characteristics | Power | | lpg gasoline |
| 2 | 2 | Rated Capacity | kg | 3500 |
| 3 | 3 | Center of load | mm | 500 |
| 4 | 4 | Lifting height | mm | 3000 |
| 5 | 5 | Free lifting height | mm | 145 |
| 6 | 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | 8 | Min.turning radius | mm | 2600 |
| 9 | 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | 10 | Overhead guard height | mm | 2170 |
| 11 | 11 | Height from seat to overhead guard | mm | 480 |
| 12 | 12 | Front overhang | mm | 545 |
| 13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 20 |
| 14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 15 | 15 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 16 | 16 | Dimensions | Overall length (with fork) | mm | 3895 |
| 17 | 17 | Overall width | mm | 1230 |
| 18 | 18 | Mast lowered height | mm | 2095 |
| 19 | 19 | Mast extended height | mm | 4265 |
| 20 | 20 | Chassis | Tire | Front | | 28×9-15-12PR |
| 21 | 21 | Rear | | 6.50-10-10PR |
| 22 | 22 | Wheelbase | mm | 1800 |
| 23 | 23 | Tread width | Front/Rear | mm | 1000/970 |
| 24 | 24 | Curb weight | None-load | kg | 4450 |
| 25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | 26 | Engine | Model | | JAPAN NISSAN K25 |
| 27 | 27 | Rated power | kw/r.p.m | 37.4/2300 |
| 28 | 28 | Rated torque | Nm/r.p.m | 176.5/1600 |
| 29 | 29 | Cylinder amount | | 4 |
| 30 | 30 | Bore×Stroke | mm | 89×100 |
| 31 | 31 | Displacement | | 2.488 |
| 32 | 32 | Fuel tank | L | 70 |
| 33 | 33 | Transmission | 1/1 automatic transmission | 1/1 automatic transmission |
| 34 | 34 | Working pressure | MPa | 17.5 |
Our Factory Strenth Introduction for SNSC CHARIOT ELEVATEUR
FORKLIFT TRUCK PRODUCTION We, SNSC fork lifter factory, are top 3
fork lifter montacargas manufactures and top 20 in the world. with
130,000 square meters production area, over 500 employees,30,000
units forklifter diesel truck production capacity per year,5000
sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifts.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality fork lifters to our customers
from all over the world.
SNSC brand FL35 3.5tons lpg gasoline powered FORKLIFT TRUCK
DELIVERY SOLUTIONS:
Our 3.5ton LPG GASOLINE forklift can be delivered by container or
ro-ro shipment.
One 20'GP containr can hold 2 units 3.5tons gasforklifts;
one 40'GP container can hold 4 units 3.5ton petrol engine forklift
trucks.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our
customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
If you have interests in our forklift, welcome you to contact
Nicole.
