    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm

    Ask Lasest Price
    Supply Ability : 500/Months
    Brand Name : snsc
    Certification : CE/ISO
    Price : negotiable
    Delivery Time : 30-45 Days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm

    SNSC 5ton 2WD 4WD Rough Terrain Forklift with Good Price For Sale
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm
    SNSC 5t rough terrain forklift with 2WD/4WD option, adopts the Deutz and Cummins engine, which is powerful and reliable, easy to maintain; It can adapt to the rugged roads in the stone market, timber market,construction sites, etc., as well as the wet and slippery roads in rain and snow.

    Standard specification
    Counterweight cover
    Full-suspension seat
    Dual air filters
    High-position exhaust
    Fuel tank cover (with lock)
    Fan protection device
    Rear workling light
    Alarm light
    Emergency switch
    Right and left reflective mirrors
    PVC ceiling
    Wet brake
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm


    Specifications of SNSC 5ton 2WD 4WD Rough Terrain Forklift with Good Price For Sale:
    Distinguishing
    mark
    1.1 Manufacturer SNSC Forklift
    1.2 Manufacturer's type designation CPCD50-XW65C-RT4 CPCD50-XW70C-RT4 CPCD50-XW95C-RT4 CPCD50-XW65E-RT2 CPCD50-XW70E-RT2 CPCD50-XW95E-RT2
    1.3 Drive: electric (battery or mains), diesel, petrol, fuel gas Diesel Diesel Diesel Diesel Diesel Diesel
    1.4 Operator type: hand, pedestrian, standing, seated, order-picker Seated Seated Seated Seated Seated Seated
    1.5 Rated capacity/rated load Q (kg) 5000 5000 5000 5000 5000 5000
    1.6 Load centre distance c (mm) 600 600 600 600 600 600
    1.8 Load distance, centre of drive axle to fork x (mm) 735 735 735 735 735 735
    1.9 Wheelbase y (mm) 2150 2150 2150 2150 2150 2150
    Weight 2.1 Service Weight kg 9050 9050 9050 9050 9050 9050
    2.2 Axle loading, laden front/rear kg 12300/1750 12300/1750 12300/1750 12300/1750 12300/1750 12300/1750
    2.3 Axle loading, unladen front/rear kg 4280/4770 4280/4770 4280/4770 4280/4770 4280/4770 4280/4770
    Tyres, chassis 3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic Pneumatic
    3.2 Tyre size, front 445/65-22.5 445/65-22.5 445/65-22.5 445/65-22.5 445/65-22.5 445/65-22.5
    3.3 Tyre size, rear 12.5/80-18 12.5/80-18 12.5/80-18 12.5/80-18 12.5/80-18 12.5/80-18
    3.5 Wheels, number front / rear (x = driven wheels) 4x4 4x4 4x4 4x2 4x2 4x2
    3.6 Tread, front b10 (mm) 1660 1660 1660 1660 1660 1660
    3.7 Tread, rear b11 (mm) 1760 1760 1760 1760 1760 1760
    Dimensions 4.1 Tilt of mast/fork carriage forward/backward α/β(°) 15/15 15/15 15/15 15/15 15/15 15/15
    4.2 Height, mast lowered h1 (mm) 2685 2685 2685 2685 2685 2685
    4.3 Free lift h2 (mm) 260 260 260 260 260 260
    4.4 Lift h3 (mm) 3000 3000 3000 3000 3000 3000
    4.5 Height, mast extended h4 (mm) 4534 4534 4534 4534 4534 4534
    4.7 Height of overhead guard (cabin) h6 (mm) 2575 2575 2575 2575 2575 2575
    4.19 Overall length l1 (mm) 4865 4865 4865 4865 4865 4865
    4.20 Length to face of forks l2 (mm) 3665 3665 3665 3665 3665 3665
    4.21 Overall width b1(mm) 2105 2105 2105 2105 2105 2105
    4.22 Fork dimensions ISO 2331 s/e/l (mm) 60×150×1220 60×150×1220 60×150×1220 60×150×1220 60×150×1220 60×150×1220
    4.23 Fork carriage DIN 15 173 --- ISO 2328, class/type A,B B B B B B B
    4.24 Fork-carriage width b3 (mm) 1950 1950 1950 1950 1950 1950
    4.25 Distance between fork-arms b5 (mm) 290-1950 290-1950 290-1950 290-1950 290-1950 290-1950
    4.31 Ground clearance, laden, below mast m1 (mm) 385 385 385 385 385 385
    4.32 Ground clearance, centre of wheelbase m2 (mm) 370 370 370 370 370 370
    4.34 Aisle width Ast (mm) 6305 6305 6305 6305 6305 6305
    4.35 Turning radius Wa (mm) 4150 4150 4150 3550 3550 3550
    Performance
    Data
    5.1 Travel speed, laden/unladen km/h 25/25 25/25 25/25 25/25 25/25 25/25
    5.2 Lift speed, laden m/s 0.45/0.52 0.45/0.52 0.45/0.52 0.45/0.52 0.45/0.52 0.45/0.52
    5.3 Lowering speed, laden m/s 0.5/0.43 0.5/0.43 0.5/0.43 0.5/0.43 0.5/0.43 0.5/0.43
    5.5 Drawbar pull, laden N 85000 95000 86000 77000 82000 78000
    5.7 Gradeability, laden % 45 55 45 39 42 41
    5.10 Service brake Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
    Parking brake Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical
    Combustion-
    engine
    7.1 Engine manufacturer/type DEUTZ TCD 3.6 L4 QSF3.8t3TC115 DEUTZ TCD 3.6 L4 DEUTZ TCD 3.6 L4 QSF3.8t3TC115 DEUTZ TCD 3.6 L4
    Emission STD EURO IIIB/Tier4F EURO IIIA/GB3 EURO Stage V EURO IIIB/Tier4F EURO IIIA/GB3 EURO Stage V
    7.2 Engine power according to DIN ISO 1585 kw/r/min 55.4/2300 86/2200 55.4/2300 55.4/2300 86/2200 55.4/2300
    7.3 Rated speed N·m/r/min 390/1300 470/1100-1700 405/1300 390/1300 470/1100-1700 405/1300
    7.4 Number of cylinders/displacement (-)/(cm3 ) 4/3620 4/3760 4/3620 4/3620 4/3760 4/3620
    7.10 Battery voltage/nominal capacity V/Ah 24/90 24/90 24/90 24/90 24/90 24/90
    Addition
    data
    10.3 Hydraulic Tank - capacity (drain & rell) liter 115 115 115 115 115 115
    10.4 Fuel tank capacity liter 120 120 120 120 120 120

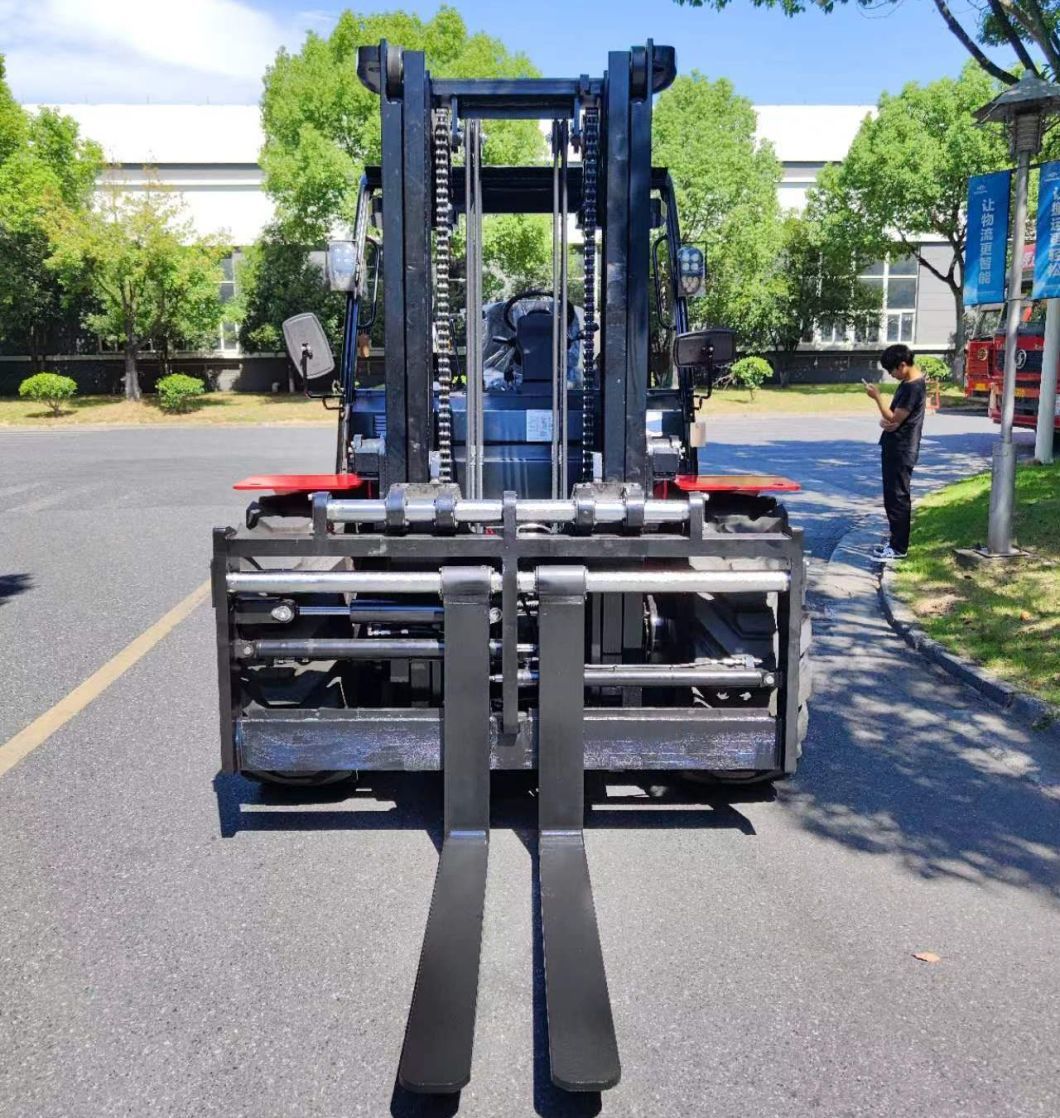

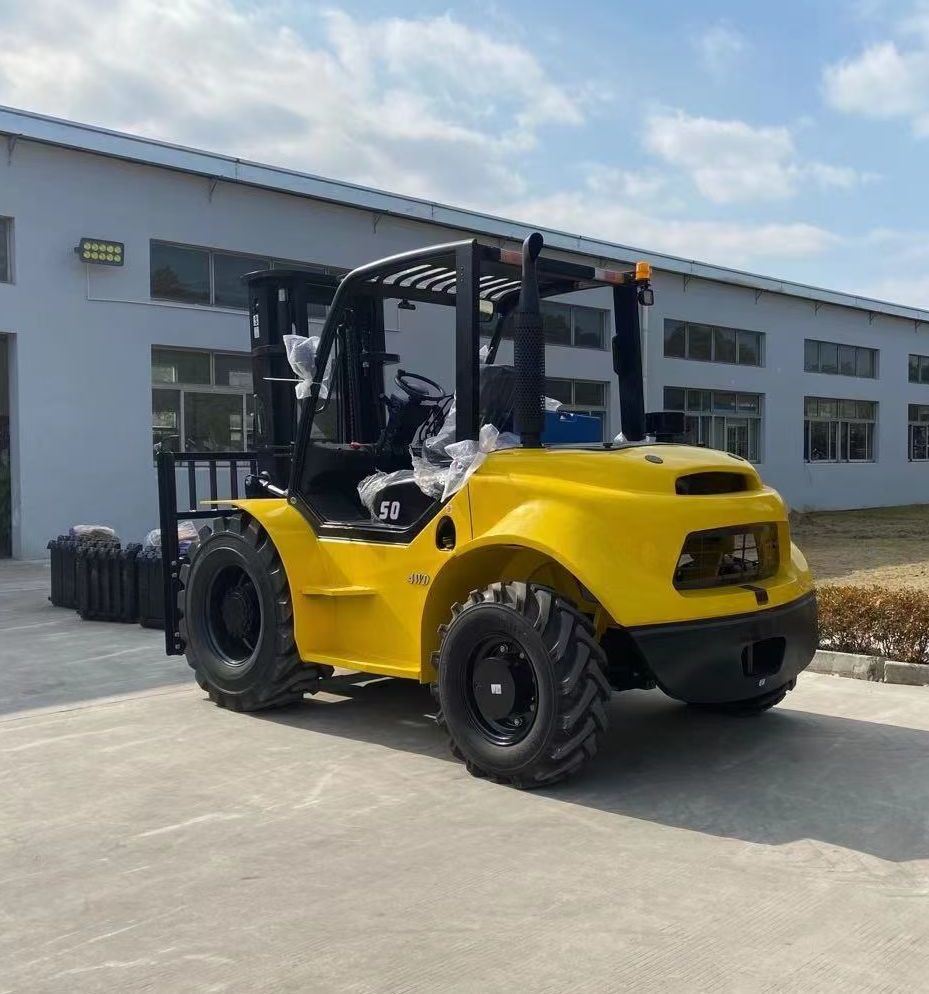

    Detailed Pictures of SNSC 5ton 2WD 4WD Rough Terrain Forklift with Good Price For Sale:

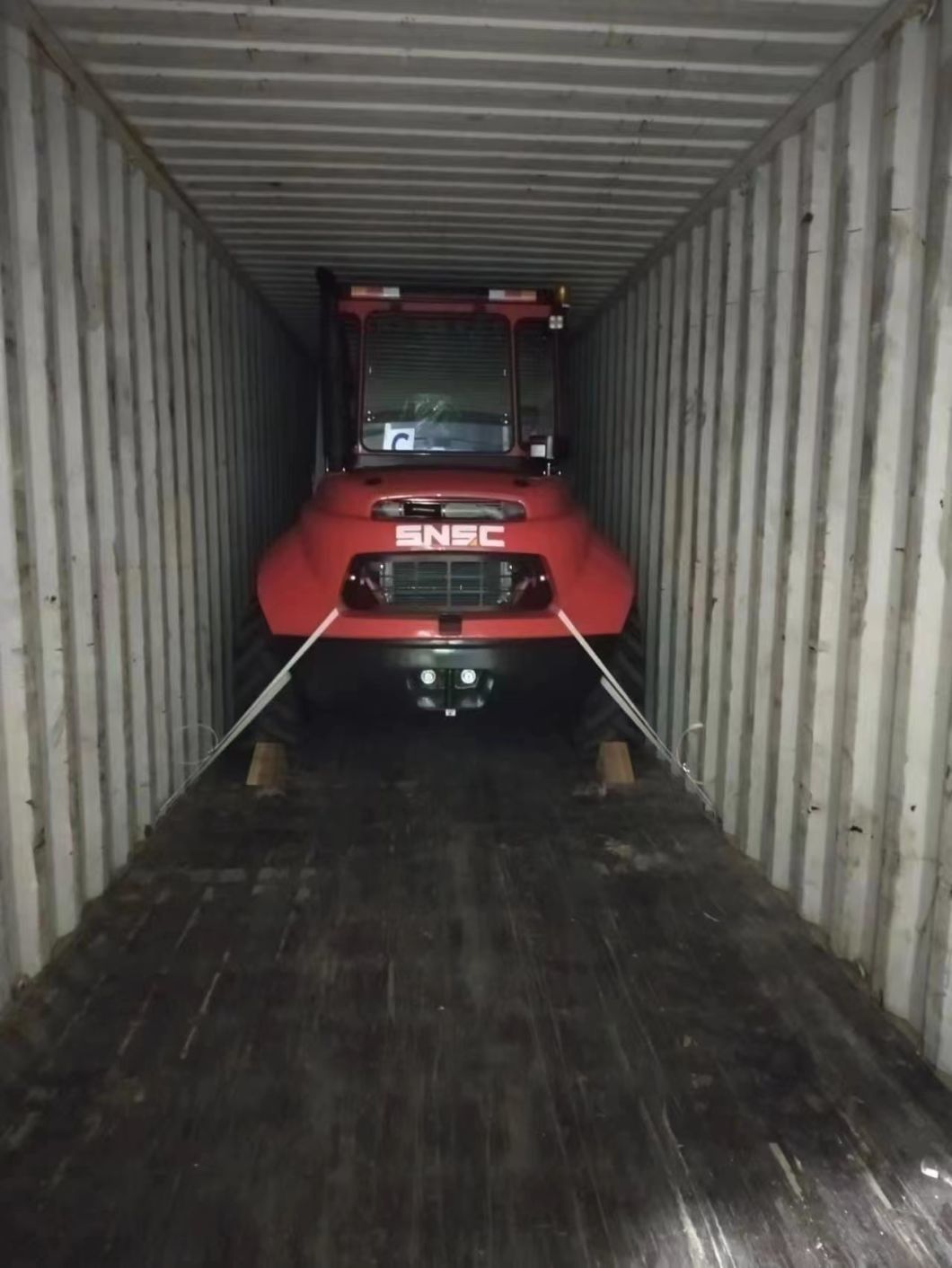

    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mmPacking method of SNSC 5ton 2WD 4WD Rough Terrain Forklift:
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm

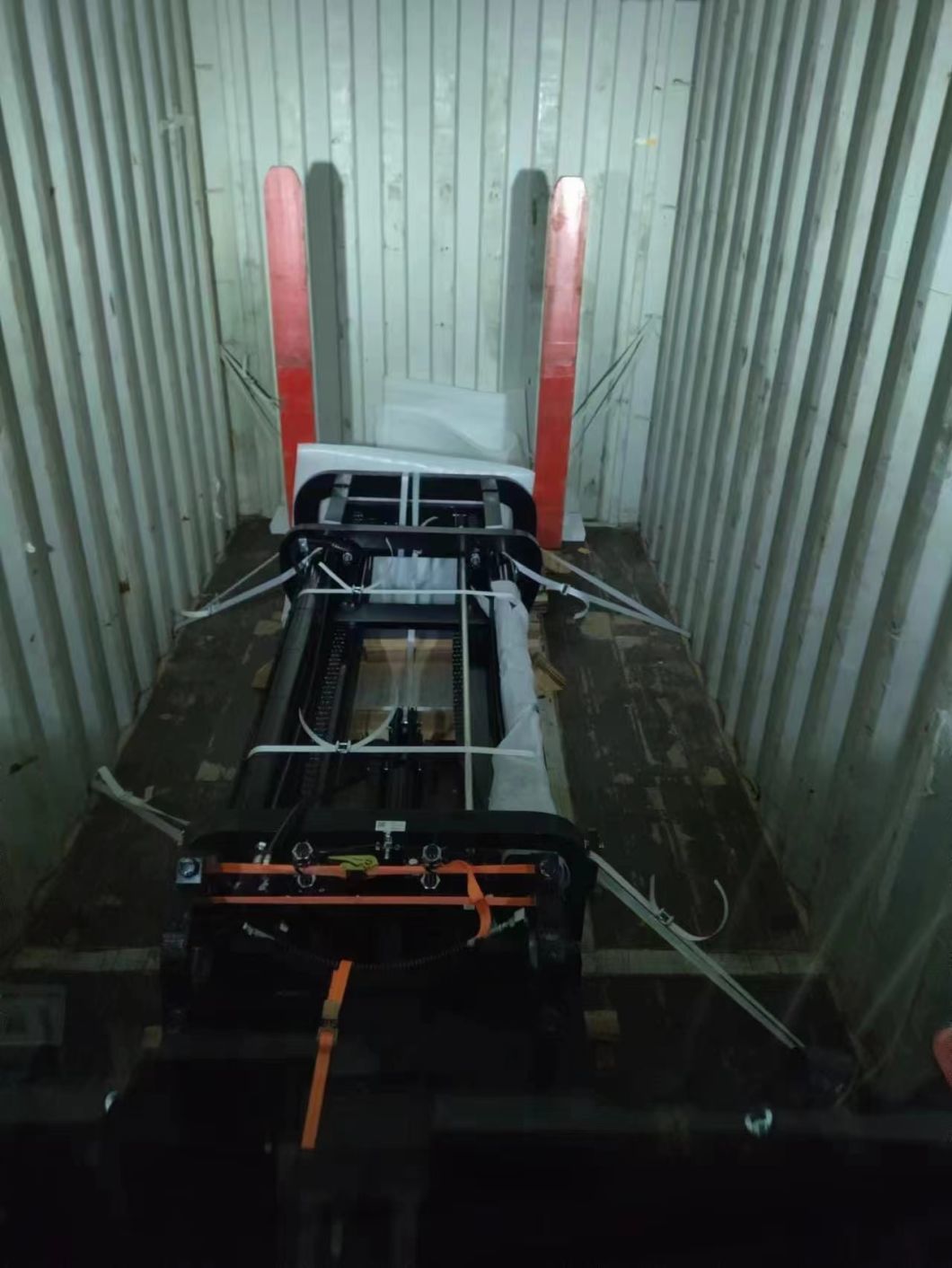

    One 40HQ can hold 2units 5ton SNSC 2WD/4WD Rough Terrain Forklifts

    Forklift Catalogue:
    Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
    (FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
    Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
    (FB15/FB20/FB25/FB30/FB35)
    LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
    (FL15/FL20/FL25/FL30/FL35)
    Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
    Snsc 3ton 3.5ton 5ton 2WD 4WD Rough Terrain Forklift for Overhead Guard Height 2350mm
    Company Introduction:
    We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

    We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

    We hope to cooperate with more customers for mutual development and benifits. SNSC is worth your trust and beyond your needs. Welcome to contact us with your demands.
