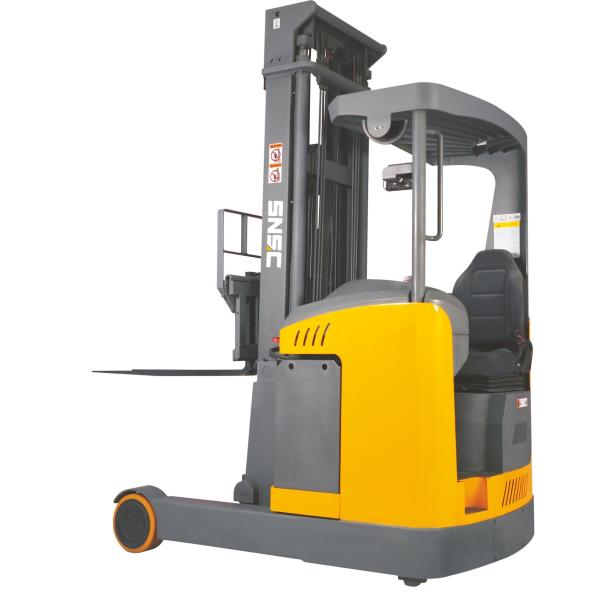

    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

    Ask Lasest Price
    Supply Ability : 500/Months
    Price : negotiable
    Brand Name : snsc
    Certification : CE/ISO
    Delivery Time : 30-45 Days
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

    Product Description
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    1
    Features
    Operating Type
    -
    Sit-on
    2
    Rated load
    kg
    2000
    3
    Load center
    mm
    600
    4
    Weight(in battery)
    kg
    3450
    5
    Size
    LxWxH
    mm
    2565x1290x2470
    6
    Fork size
    LxWxT
    mm
    1220x122x40
    7
    Wheel Base
    mm
    1510
    8
    Lifting height
    mm
    5600
    10
    Free lifting height
    mm
    1570
    11
    Door frame angle
    1/3
    12
    Reach distance
    mm
    600
    14
    Support Arm Medial Width
    mm
    920
    15
    To The Length Of The Support Arm
    mm
    1920
    17
    Min. Ground Clearance
    mm
    90
    18
    Motor
    Power of driving motor
    kw
    6.4
    19
    Power of lifting motor
    kw
    11.5
    20
    Battery voltage/Rated capapcity
    V/Ah
    48/500
    21
    Drive control mode
    MOSFET
    22
    Weight(battery)
    kg
    890
    23
    Working Performance
    Right Angle Stacking Aisle Width
    Pallet Size: 800*1200 The Edge of The Size
    mm
    2380
    24
    Turning Radius
    mm
    1725
    25
    Travel Speed Full Load/No Load
    kw/h
    mm
    9.5/10.5
    26
    Lifting Speed Full Load /No Load
    mm/
    kg
    260/360
    27
    Descent Speed Full Load/No Load
    mm/
    V/Ah
    500/400
    28
    Grade Ability Full Load/No Load
    %
    kw
    10/15
    Detailed Images
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    2 driving motor+ 1 steering motor
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

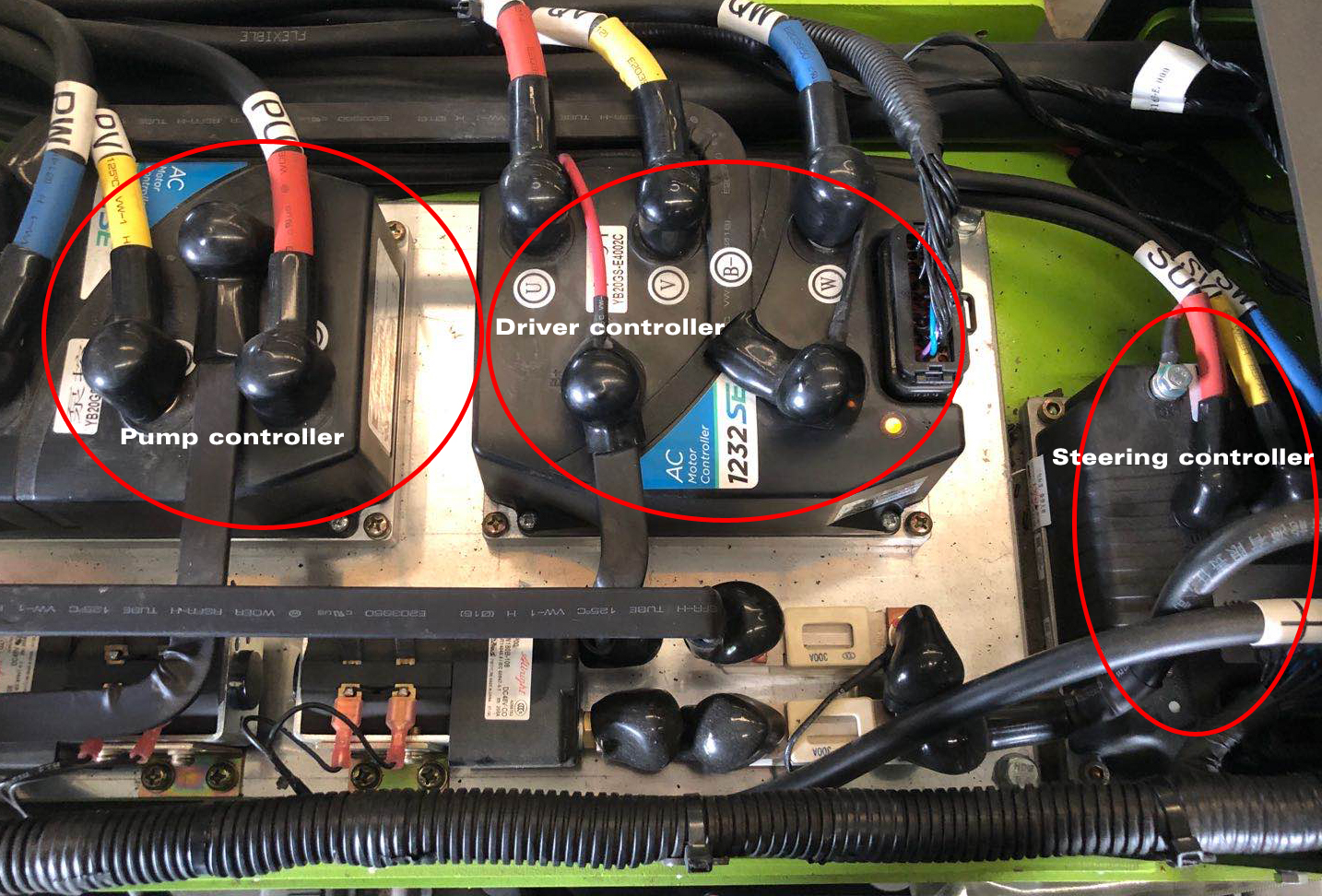

    Double Curtis controller
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Chinese best brand battery
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

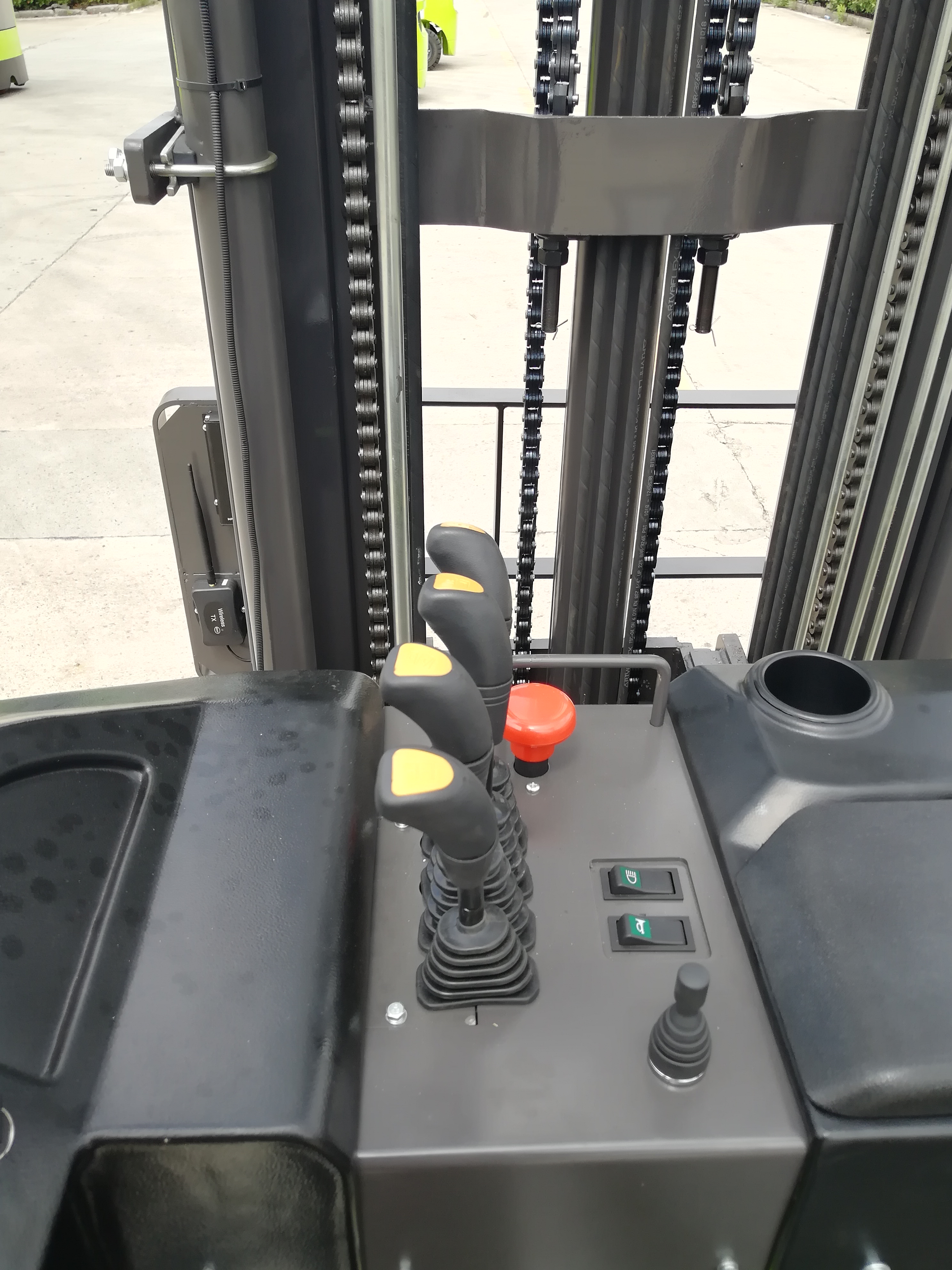

    Mounted right operation handle
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    LED rainproof Dispaly screen
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Full LED Light
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

    Toyota comfortable seat

    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

    Electric Steering
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

    Camera

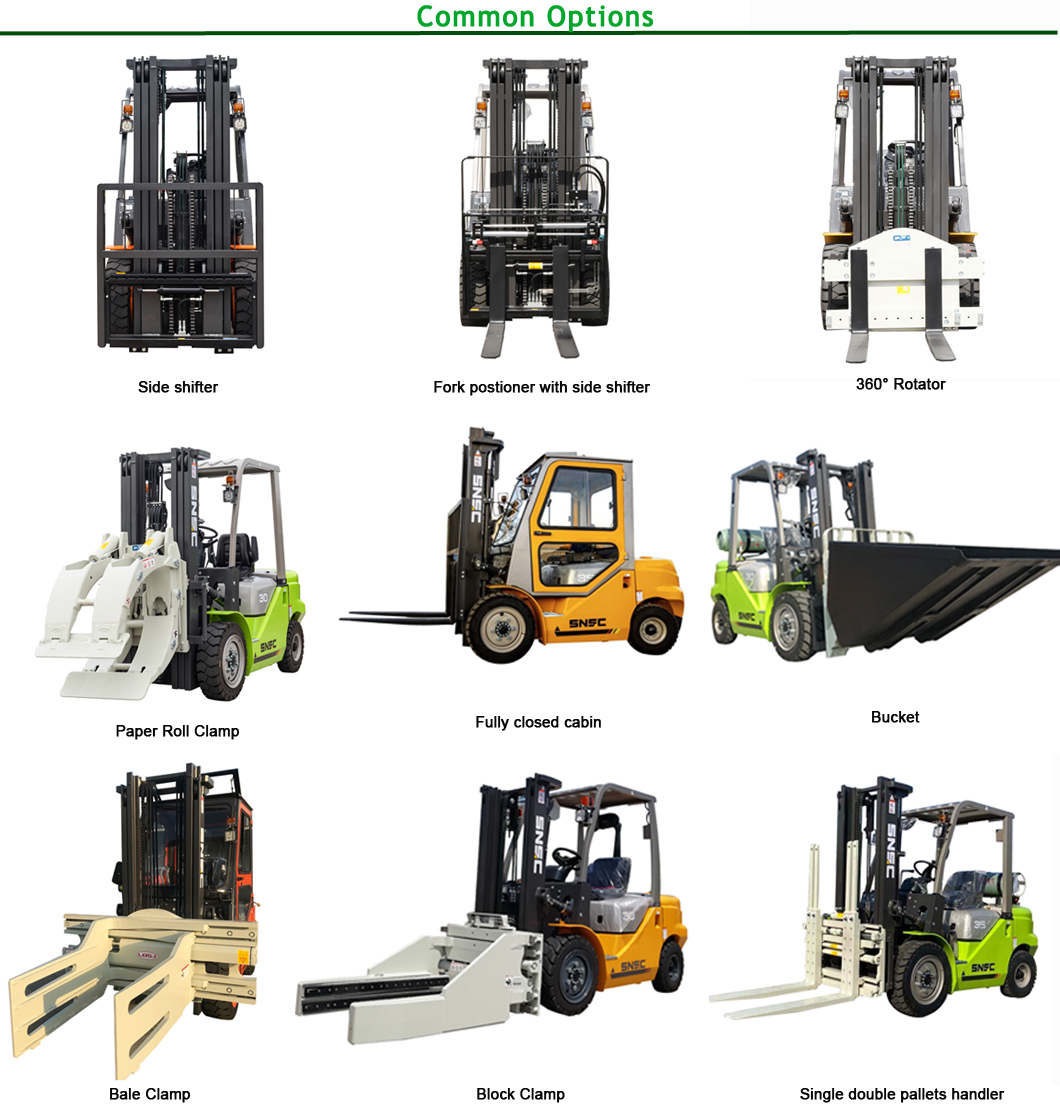

    Optional Attachments
    SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
    bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Quality Control
    SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
    Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Tilt angle test
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

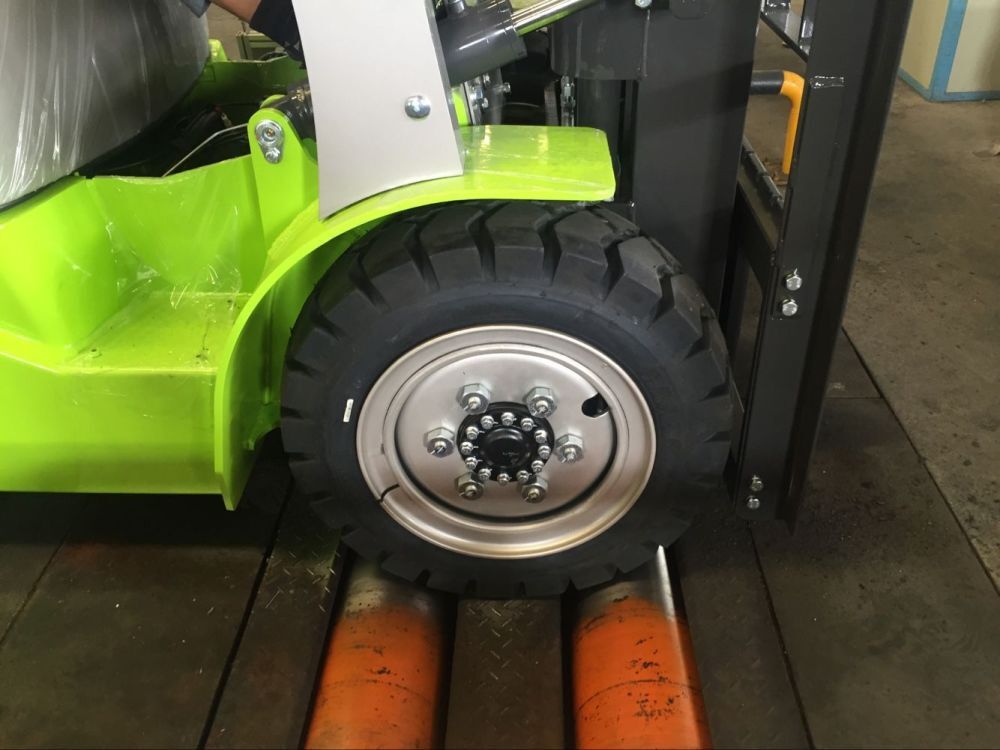

    Wheel hug test
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Brake Line Test
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle

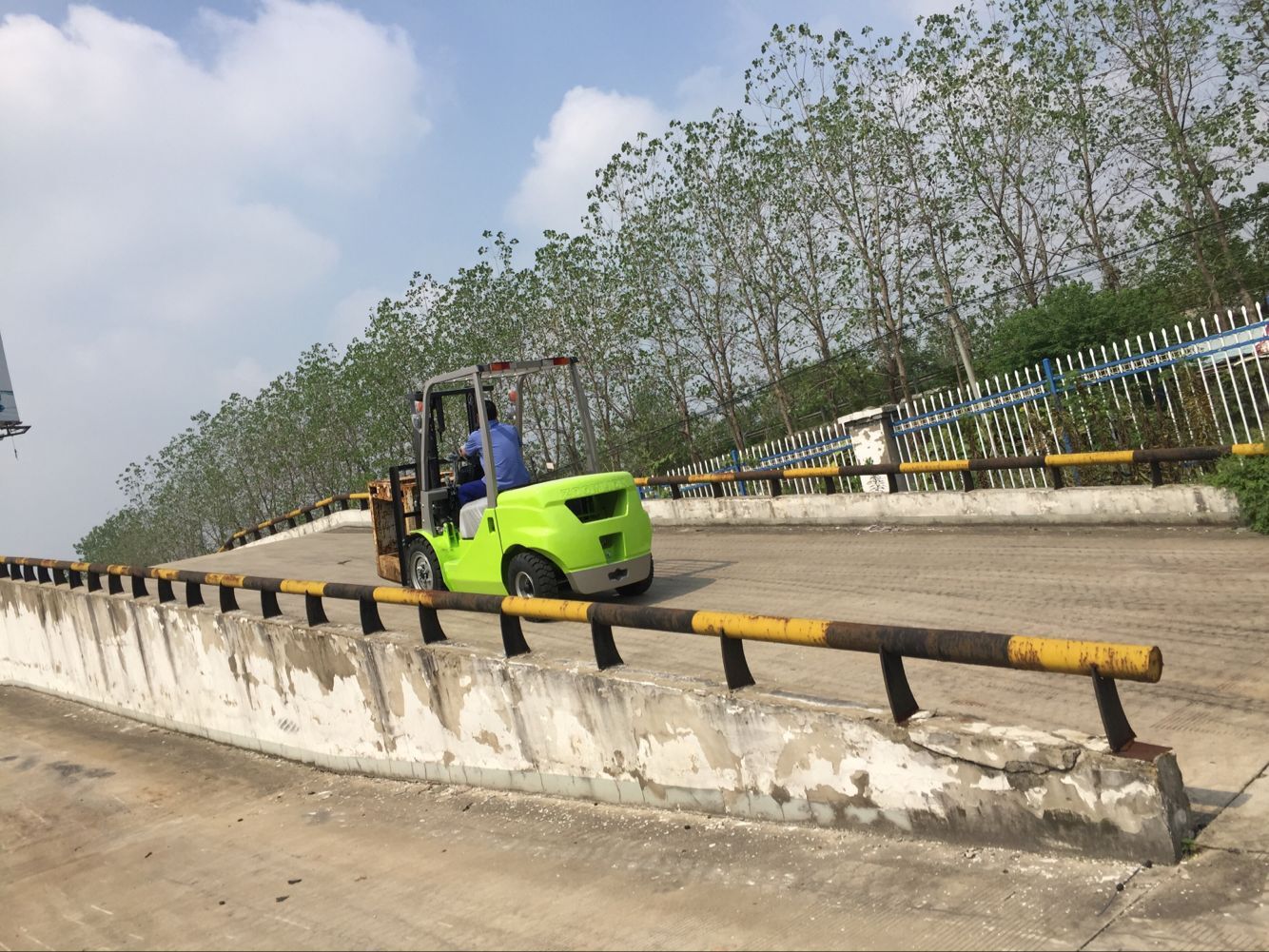

    Climbing test
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Lifting Test
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Turning Test
    Package and Delivery
    3 wheel electric 1.6ton battery operated forklift with cheap price Shipping with Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

    Packaging&Shipping 1*20'GP - 4 Units, 1*40'GP - 6 Units
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    Successful Cases
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    SNSC --"Beyond your needs!"
    SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    1.6ton Three wheel electric forklift to Argentina
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    1.8on Three wheel electric forklift to Algeria
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    2ton Three wheel electric forklift to Austrila
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    1.6ton Three wheel electric forklift to Turnisa
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    2ton Four wheel electric forklift to Canada
    Machinery Repair Shops Electric Reach Truck 1.5 Ton 1.6 Ton 2 Ton SNSC Narrow Aisle
    1.6Ton Three wheel electric forklift to Turnisato Bangaladesh
    Our Factory
    We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

    our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
