    Shacman Truck Mounted Self Loading Concrete Mixer Truck 12 Cubic Meters

    Product Description

    Shacman 12 cubic meters truck mounted concrete mixer pump self loading concrete mixer truck for sale

    Main features of concrete truck mixer

    1) Material selection/Material: WISCO Q345 low alloy steel is used to make the mixer tank blades. Shanghai Baosteel B520JJ or QSTE420TM alloy steel can also be selected for customer requirements.
    2) Cutting: All the company's sheet cutting, need to be programmed into the CNC plasma flame cutting machine for cutting and cutting. High efficiency and high precision in the blanking process
    3) Cylinder production: There are three key process requirements for mixing car body: one is concentricity, the other is strength, the surface and helix angle of the three cylinder blades
    1. Concentricity. Our Company's mixing car body adopts the special "mixing car body splicing tooling", which effectively guarantees the concentricity of the cylinder through the clamping position of the mixing cylinder flange, head, raceway and barrel connection.

    2. Strength. The strength of the tank is mainly guaranteed by the welding process. The company uses automatic welding machine to carry out the ring seam of the tank, the welding of the longitudinal seam, and the welding consumables use the welding wire of a well-known brand.

    3. The barrel of the cylinder. The barrel blades are the more critical components of the mixer truck. There are two symmetrically distributed logarithmic spirals in the body of the mixing car. The blades are designed in different sections of the cylinder to have different helix angles, pitches, elevations and chamfers, and eliminate the blades and the wall. The dead angle of the joint can realize three-dimensional space agitation; the feeding and discharging speed is fast, the concrete homogeneity is good, the yield rate is high, and no material is accumulated. The three main technical performance indicators of feed rate, discharge speed, concrete homogeneity and yield rate exceeded the national regulations.


    Technical parameter of Shacman concrete mixer truck
    Concrete mixing capacity8cbm10cbm12cbm14cbm
    CabinStandard Cab, left or right hand drive
    With two bunks, 70° hydraulically tillable to the front
    Vehicle Main Dimensions
    (L x W x H)mm
    9400x2500x39209600x2500x39509850x2525x395010500×2496×3980
    Wheel base (mm)3625+13503825+13504025+13501800+3200+1350
    Wheel track
    (front/rear) (mm)
    1500/27251500/23651550/29151500/2380
    Approach/Departure angle(°)16/1519/2225/1316/19
    Tare Weight13700145001530016500
    Loading Capacity27300265002570033500
    Front axles loading capacityHF9 1x9000HF9 2x9000
    Rear axles loading capacityHC16 2x16000
    EngineBrandWeichai
    ModelWD615.47
    Type4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
    Horse Power
    (HP)
    371HP
    Emission
    standard
    Euro 2
    GearboxHW19710 , 10 forwards & 2 reverse
    ClutchReinforced diaphragm clutch, diameter 430mm
    Steering GearZF 8118,power steering, hydraulic steering with power assistance
    Fuel tank (L)300
    Tire12R22.5 tubeless tire , 10 pieces with one spare total 11 pieces.
    BrakesService brake: dual circuit compressed air brake
    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust valve brake
    Mixing tank material16MnQ345
    Thickness for end plate8mm
    Thickness for mixer body6mm
    Feeding Speed (m3)≥3
    Discharging Speed (≥m3)≥2
    Leftover RateNearly Zero
    Max Rotating Speed (r/min)14---16
    Driving SystemSpeed ReducerItaly brand PMP
    Hydraulic PumpItaly brand PMP
    Hydraulic MotorItaly brand PMP
    Water Tank Capacity (L)400

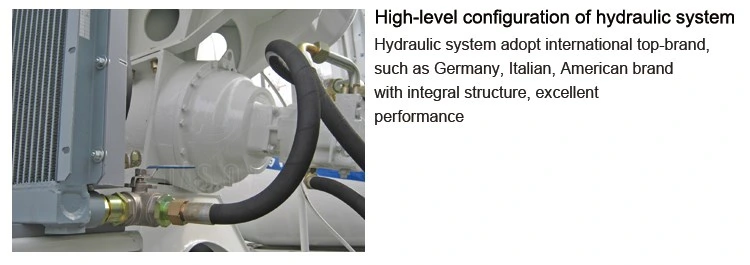

    Concrete mixer truck technical details
    Shacman 12 Cubic Meters Truck Mounted Concrete Mixer Pump Self Loading Concrete Mixer Truck for Sale
    Shacman 12 Cubic Meters Truck Mounted Concrete Mixer Pump Self Loading Concrete Mixer Truck for Sale
    Shacman 12 Cubic Meters Truck Mounted Concrete Mixer Pump Self Loading Concrete Mixer Truck for Sale
    Shacman 12 Cubic Meters Truck Mounted Concrete Mixer Pump Self Loading Concrete Mixer Truck for Sale
    Shacman 12 Cubic Meters Truck Mounted Concrete Mixer Pump Self Loading Concrete Mixer Truck for Sale




    Company introduction

    Xiagong Chusheng has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
    Pre-sale service:
    1. Reply enquiries in 24 hours.
    2. Market research and forecast for customer.
    3. Provide unique and professional solutions based on customer's requirement.
    4. Data sheet and samples offer.
    5. Other services, such as special packing design, factory visiting and so on.

    In-sale service:
    1. Tracking report in producing.
    2. Quality test report for every order.
    3. Photos and videos as per customer's requirement.
    4. Free spare parts.

    After-sale service:
    1. Lifetime free maintenance and upgrade.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3. Customer satisfaction tracking report.
    4. Free technician training.
    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
    6. Special service for big project, such as stadium, exhibitions, squares and so on.
