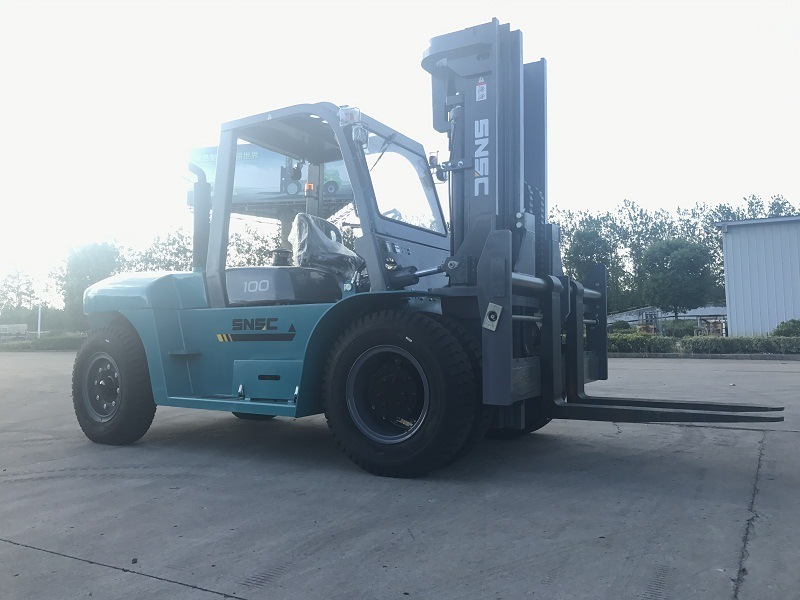

Main Features for SNSC forklift 10ton diesel motor forklift truck
1) with powerful Chinese XINCHAI 490/ original JAPAN ISUZU 6BG1
engine;
2) with auto electric hydraulic transmission by finger with TCM
technology, just use your finger that can achieve the forklift's
forward and backward;
3) screwed manual fork positioner is included; we also have
hydraulic fork posioner for your choice;
4) with CE, ISO, GHOST certificates, quality is guaranteed;
5) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand
hydraulic pump;
6) with double front penumatic tires, high position exhaust, double
air filter;
7) with a tool box and free spare parts;
8) Our 10tons forklift diesel truck can install different
attachments to help your work, like, hydrulic fork positioner,
screwed fork positioner, solid tires, paper roll clamp, side
shifter, full free container mast, cabin.
Specifications of SNSC 10 ton diesel motor forklift truck
| SNSC FD100 FORKLIFT SPECIFICATIONS |
| NO. | Specifications | unit | FD100 |
| 1 | Characteristics | Power | | diesel |
| 2 | Rated Capacity | kg | 10000 |
| 3 | Center of load | mm | 600 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 220 |
| 6 | Forks L×W×H | mm | 1220×175×80 |
| 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 3900 |
| 9 | Min.ground clearance(Mast) | mm | 250 |
| 10 | Overhead guard height | mm | 2600 |
| 11 | Height from seat to overhead guard | mm | 1090 |
| 12 | Front overhang | mm | 715 |
| 13 | Perf | Max.traveling speed(loaded) | km/h | 26 |
| 14 | Max.lifting speed(loaded/empty) | mm/s | 290/350 |
| 15 | Drawbar pull/Gradeability | kN/% | 57/20 |
| 16 | Dimensions | Overall length (without fork) | mm | 4260 |
| 17 | Overall width | mm | 2230 |
| 18 | Mast lowered height | mm | 2850 |
| 19 | Mast extended height | mm | 4335 |
| 20 | Chassis | Tire | Front | | 9.00-20-14PR |
| 21 | Rear | | 9.00-20-14PR |
| 22 | Wheelbase | mm | 2800 |
| 23 | Tread width | Front/Rear | mm | 1600/1700 |
| 24 | Curb weight | None-load | kg | 12500 |
| 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | (12/90)x2 |
| 26 | Engine | Model | | XC6110 |
| 27 | Rated power | kw/r.p.m | 83/2000 |
| 28 | Rated torque | Nm/r.p.m | 450/1450 |
| 29 | Cylinder amount | | 6 |
| 30 | Bore×Stroke | mm | 110×125 |
| 31 | Displacement | | 7.127 |
| 32 | Fuel tank | L | 140 |
| 33 | Transmission | 1/1 automatic transmission |
| 34 | Working pressure | MPa | 20 |
Our Strong Factory Capacity
We, ZOOMLION/SNSC fork lifter factory, are top 3 fork lifter
montacargas manufactures and top 20 in the world. with 130,000
square meters production area, over 500 employees,30,000 units
forklifter diesel truck production capacity per year,5000 sets
export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality fork lifters to our customers
from all over the world.
Related SNSC forklift products
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
If you have interests in our forklift, welcome you to contact
Nicole
