FORKLIFT SPCIFICATIONS
3Ton Diesel Forklift main configuration:
1) with powerful Chinese XINCHAI 490/ original JAPAN ISUZU C240/MITSUBISHI S4S
engine;
2) with auto electric hydraulic transmission by finger with TCM technology;
3) with japanese hydraulic system, like japan shimadzu brand pump and valves;
4) with USA EATON brand steering gear;
5)with 3000mm-6000mm lifting height;
with copper radiator, Wide back mirroe/Led light/Warning lights/Luxury
waist support seat/
Cooper tank/ Lamp shade protection frame /Ramjet overhead guard/
/Tilt cylinder dust shield;
6) with a tool box and free spare parts;
7) with CE, ISO, GHOST certificates, quality is guaranteed.
| Specifications | Unit | FD30 |
| 1 | Characteristics | Power | | diesel |
| 2 | Rated Capacity | kg | 3000 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 145 |
| 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 2600 |
| 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | Overhead guard height | mm | 2170 |
| 11 | Height from seat to overhead guard | mm | 480 |
| 12 | Front overhang | mm | 545 |
| 13 | Perf | Max.traveling speed(loaded) | km/h | 20 |
| 14 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 15 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 16 | Dimensions | Overall length (without fork) | mm | 2825 |
| 17 | Overall width | mm | 1230 |
| 18 | Mast lowered height | mm | 2065 |
| 19 | Mast extended height | mm | 4260 |
| 20 | Chassis | Tire | Front | | 28×9-15-12PR |
| 21 | Rear | | 6.50-10-10PR |
| 22 | Wheelbase | mm | 1800 |
| 23 | Tread width | Front/Rear | mm | 1000/970 |
| 24 | Curb weight | None-load | kg | 4250 |
| 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | Engine | Model | | QC490GP |
| 27 | Rated power | kw/r.p.m | 39/2650 |
| 28 | Rated torque | Nm/r.p.m | 157/1980 |
| 29 | Cylinder amount | | 4 |
| 30 | Bore×Stroke | mm | 90×105 |
| 31 | Displacement | | 2.67 |
| 32 | Fuel tank | L | 70 |
| 33 | Transmission | | 1/1 automatic transmission |
| 34 | Working pressure | MPa | 17.5 |

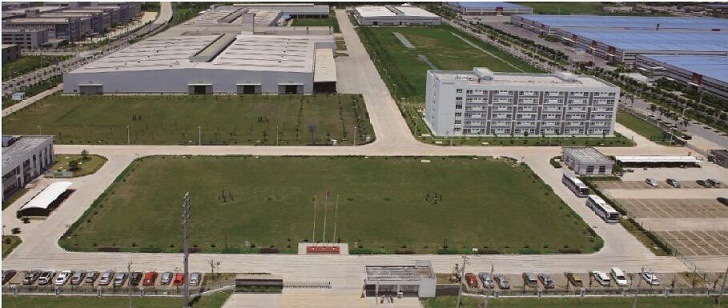

We are first calss in Chinese forklift manufactures and top 20 in
the world,with 130,000 square meters production area,over 500
employees,30,000 units forklift truc production capacity per year
,5000 sets export volume
Our R&D research is in Britain, and we invested over 600
million in fork lifter factory, use advanced equipments to realize
over 90% automatic production, e.g.: welding robot.
Every forklift part is self produced; we have 5 series and over 200
models to meet customers' different demands, we can do all kinds of
lifting height mast according your different working conditions
OUR PRODUCTS
I. Diesel forklift range from 1.5 to
16tons;(FD15/18/20/25/30/35/40/45/50/60/70/80/100/160)
II. Battery forklift range from 1.5 to 3.5tons;(FB15/20/25/30/35)
III.LPG and gasoline forklift range from 1.5 to 3.5
ton;(FL15/20/25/30/35)
IV.warehouse equipment, like electric pallet truck, electric reach
truck, electric stacker & electric trailer.(YB20,DB16,TB15)
OUR CERTIFICATIONSOur all kinds of forklift forsale has passed all kinds of
international certificates, eg:Russian Gost certificates or
European CE(EC) certificates, especially, our CE certificates are
made in Turkey. Quality is guaranteed and performance stable.
OUR SERVICESWARRANTY TIME:
The warranty period for forklift is 12 months or 2000 working hours
begins from the forklift arrival date of oversea port, depends on
which come first.
SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days
after shipment.
MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any
maintenance problem you can not handle, we can also offer training
and maintenance services in our factory field or at your site.Your
requirements will be handled promptly and appropriately.
OUR MAITRMANCE PLAN| Mandatory maintance time | The first mandatory maintance | The second mandatory maintance | The third mandatory maintance | The fourth mandatory maintance | The fifth mandatory maintance | The sixth mandatory maintance |
| Running time | 50hours | 200 hours | 500 hours | 800 hours | 1100 hours | 1400 hours |
We use advanced equipments, eg: welding robot and others to realize
over 95% automatic production line.Every forklift part is produced
by ourselves, our products are all well-designed and strictly
tested, We traite every process from prepare materials-
structure-painting-assambly to delivery to make customer's
satisfaction.
PRODUCT DESCRPTIONSJapan ISUZU engine for your choice
3tons diesel forklift adapts china engine, optional Japan engine,
eg: Imported ISUZU brand/ Yanmar / Kubota/ Perkins/ Mitsubishi
engine for your choosing, Stable quality and reliable performance.
you can get spare parts in oversea market easily.
Automatic hydraulic Transmission
3tons diesel forklift uses automatic transimission with finger,
make your work very comfortable and efficient.
If you like hand transmission or mechanical transmission, price
will be much more competitive.
Japan shimadzu Hydraulic System & USA Eaton Redirector
we use Japan shimadzu hydraulic system and USA Eaton Redirector to
3tons diesel forklift , to guarantee forklift performance more
stable and reliable.
What's more, spare parts are available in oversea markets.
Different mast &lifting height for 3ton diesel forklift
Our 3ton diesel forklift used standard 3000mm lifting height duplex
mast.
But we can also do different lifting height mast according
customers' different working condition, eg: 3m duplex standard
mast/ 4.5m duplex full free mast/ 6m triplex full free mast and
others. Our mast lifting height capacity from 3m to 7m for
customers choosing.
PACKAGE AND DELIVERY
3ton diesel forklift use Container Package or RO-RO.Covered
Forklift In Container Shipping with Tool Box, Forklift Catalogue,
Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves
and Spare Parts together.
Packaging&Shipping 1*20'GP - 2 Units, 1*40'GP - 4 Units
