Supply Ability : | 500/Months |
Brand Name : | snsc |
Certification : | CE/ISO |
Price : | negotiable |
Delivery Time : | 30-45 Days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

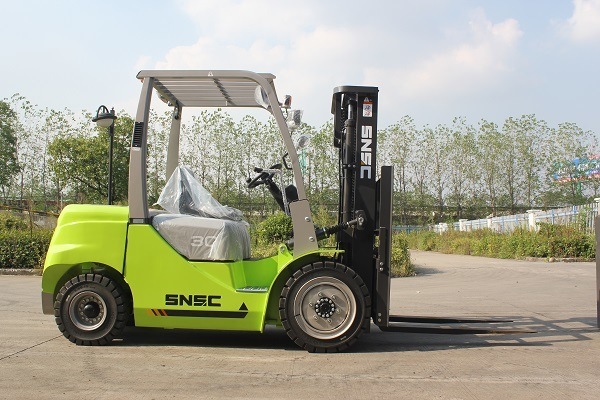

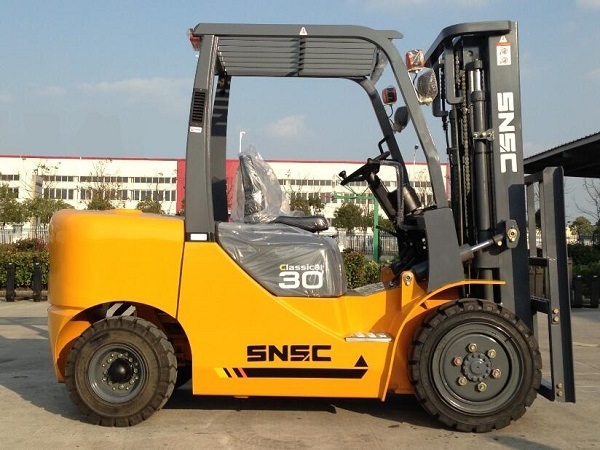

1) Our 3tons diesel forklift truck equip with powerful Chinese XINCHAI 490/ original JAPAN ISUZU/MITSUBISHI/ Japan NISSAN K25 engine;
2) 3t diesel engine forklift lifter truck with auto electric hydraulic transmission by finger with TCM technology, just use your finger that can achieve the forklift's forward and backward;
3) 3t diesel lifter truck forklift with a tool box and free spare parts;
4) 3t diesel forklift truck with CE, ISO, GHOST certificates,
quality is guaranteed;
5) SNSC 3t forklift euqips with JAPANESE hydraulic system, like
JAPAN SHIMADZU brand hydraulic pump and muti-way control valves,
which can guarantee our snsc 3t forklift's best performance;
6) SNSC diesle 3t forklift installed famouse USA EATON brand
steering gear, which makes our snsc forklift have longer working
life;
7) SNSC forklift diesel truck can install different attachments to
help your work, like paper roll clamp, side shifter,
full free container mast, bale clamp, button clamp, block clamp,
cabin, etc.

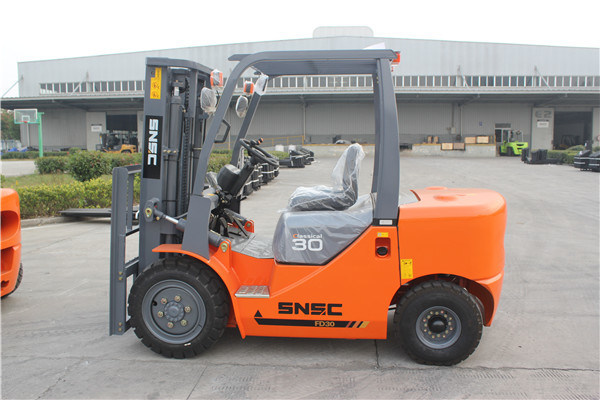

STANDARD FD30 DIESEL FORKLIFT SPECIFICATIONS | ||||||
No. | Specifications | Unit | FD30 | |||
1 | 1 | Characteristics | Power | diesel | ||
2 | 2 | Rated Capacity | kg | 3000 | ||
3 | 3 | Center of load | mm | 500 | ||
4 | 4 | Lifting height | mm | 3000 | ||
5 | 5 | Free lifting height | mm | 145 | ||
6 | 6 | Forks L×W×H | mm | 1070×125×45 | ||
7 | 7 | Tilt Forward/Backward | . | 6/12 | ||
8 | 8 | Min.turning radius | mm | 2600 | ||
9 | 9 | Min.ground clearance(Mast) | mm | 120 | ||
10 | 10 | Overhead guard height | mm | 2170 | ||
11 | 11 | Height from seat to overhead guard | mm | 480 | ||
12 | 12 | Front overhang | mm | 545 | ||
13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 20 | |
14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/520 | ||
15 | 15 | Drawbar pull/Gradeability | kN/% | 18/20 | ||
16 | 16 | Dimensions | Overall length (without fork) | mm | 3895 | |
17 | 17 | Overall width | mm | 1230 | ||
18 | 18 | Mast lowered height | mm | 2065 | ||
19 | 19 | Mast extended height | mm | 4260 | ||
20 | 20 | Chassis | Tire | Front | 28×9-15-12PR | |
21 | 21 | Rear | 6.50-10-10PR | |||
22 | 22 | Wheelbase | mm | 1800 | ||
23 | 23 | Tread width | Front/Rear | mm | 1000/970 | |
24 | 24 | Curb weight | None-load | kg | 4250 | |
25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
26 | 26 | Engine | Model | XC490GP | ||
27 | 27 | Rated power | kw/r.p.m | 39/2650 | ||
28 | 28 | Rated torque | Nm/r.p.m | 157/1980 | ||
29 | 29 | Cylinder amount | 4 | |||
30 | 30 | Bore×Stroke | mm | 90×105 | ||
31 | 31 | Displacement | 2.67 | |||
32 | 32 | Fuel tank | L | 70 | ||
33 | 33 | Transmission | 1/1 automatic transmission | |||
34 | 34 | Working pressure | MPa | 17.5 |

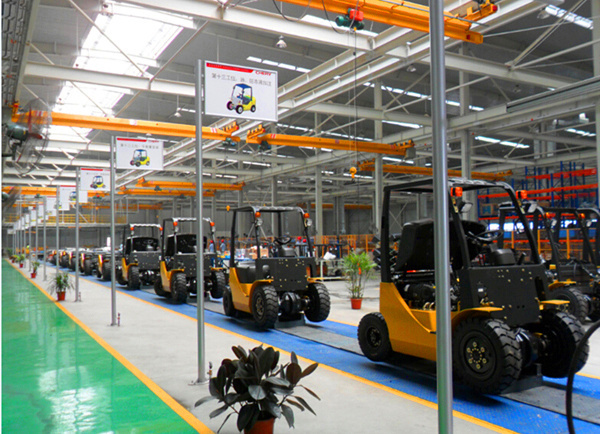

We, SNSC fork lifter factory, are top 3 fork lifter montacargas
manufactures and top 20 in the world. with 130,000 square meters
production area, over 500 employees,30,000 units forklifter diesel truck production
capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifters.''QUALITY LEADING THE
FUTURE" is our belief for ever.
We'd like to offer our best quality fork lifters to our customers
from all over the world.
If you have interests in our 3ton diesel forklift, welcome you to contact Nicole
SNSC CHARIOT ELEVATEUR DIESEL MOTOR 3T FORKLIFT
![]() |
