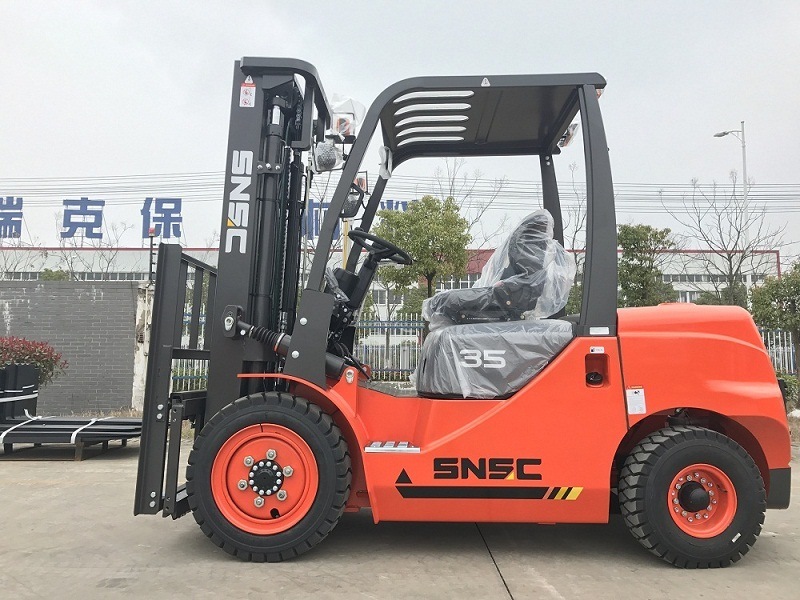

Main Features for SNSC FD35 3.5t diesel forklift truck
1) with powerful Chinese XINCHAI 490/ original JAPAN
ISUZU/MITSUBISHI/ Japan NISSAN K25 engine;
2) with auto electric hydraulic transmission by finger with TCM
technology, just use your finger that can achieve the forklift's
forward and backward;
3) with a tool box and free spare parts;
4) with CE, ISO, GHOST certificates, quality is guaranteed;
5) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand
hydraulic pump and muti-way control valves, which can guarantee our
snsc 3.5t forklift's best performance;
6) USA EATON brand steering gear, which makes our snsc forklift
have longer working life;
7) SNSC forklift diesel truck can install different attachments to
help your work, like paper roll clamp, side shifter, full free
container mast, bale clamp, button clamp, block clamp, cabin.
| mast type | lifting height |
| standard duplex mast | 3m-4m |
| duplex full free mast | 3m-4m |
| triplex full free mast | 3.6m/4m/4.5m/5m/5.5m/6m/7m |
Specifications of SNSC 3.5ton diesel forklift truck
| SNSC FD35 FORKLIFT SPECIFICATIONS |
| No. | Specifications | Unit | FD35 |
| 1 | 1 | Characteristics | Power | | diesel |
| 2 | 2 | Rated Capacity | kg | 3500 |
| 3 | 3 | Center of load | mm | 500 |
| 4 | 4 | Lifting height | mm | 3000 |
| 5 | 5 | Free lifting height | mm | 145 |
| 6 | 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | 8 | Min.turning radius | mm | 2600 |
| 9 | 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | 10 | Overhead guard height | mm | 2170 |
| 11 | 11 | Height from seat to overhead guard | mm | 480 |
| 12 | 12 | Front overhang | mm | 545 |
| 13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 20 |
| 14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 15 | 15 | Drawbar pull/Gradeability | kN/% | 18/20 |
| 16 | 16 | Dimensions | Overall length (without fork) | mm | 3895 |
| 17 | 17 | Overall width | mm | 1230 |
| 18 | 18 | Mast lowered height | mm | 2095 |
| 19 | 19 | Mast extended height | mm | 4265 |
| 20 | 20 | Chassis | Tire | Front | | 28×9-15-12PR |
| 21 | 21 | Rear | | 6.50-10-10PR |
| 22 | 22 | Wheelbase | mm | 1800 |
| 23 | 23 | Tread width | Front/Rear | mm | 1000/970 |
| 24 | 24 | Curb weight | None-load | kg | 4450 |
| 25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 26 | 26 | Engine | Model | | QC490GP |
| 27 | 27 | Rated power | kw/r.p.m | 39/2650 |
| 28 | 28 | Rated torque | Nm/r.p.m | 157/1980 |
| 29 | 29 | Cylinder amount | | 4 |
| 30 | 30 | Bore×Stroke | mm | 90×105 |
| 31 | 31 | Displacement | | 2.67 |
| 32 | 32 | Fuel tank | L | 70 |
| 33 | 33 | Transmission | 1/1 automatic transmission |
| 34 | 34 | Working pressure | MPa | 17.5 |
Our Factory Strength
We, SNSC fork lifter factory, are top 3 fork lifter montacargas
manufactures and top 20 in the world. with 130,000 square meters
production area, over 500 employees,30,000 units forklifter diesel
truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief for ever.
We'd like to offer our best quality forklift to our customers from
all over the world.
SNSC brand FD35 3.5tons DIESLE MOTOR powered FORKLIFT TRUCK
shipment solutions:
Our 3.5ton DIESEL forklift can be delivered by container or ro-ro
shipment.
One 20'GP containr can hold 2 units 3.5tons diesel forklifts;
one 40'GP container can hold 4 units 3.5ton diesel engine forklift
trucks.
Our professional service for SNSC forklifts to our customers
WARRANTY TIME:
The warranty period for SNSC Forklift is 12 months or 2000 working
hours begins from the forklift arrival date of oversea port,
depends on which come first.
SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days
after shipment.
We are dedicated to provide our clients with spare parts with the
highest quality, exact fitness and appropriate function.We have a
big original spare parts library that can meet the client's need
for all kinds of parts. We guarantee fast deliveries and service,
wherever you are.
MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any
maintenance problem you can not handle, we can also offer training
and maintenance services in our factory field or at your site.
Your requirements will be handled promptly and appropriately.
Related SNSC forklift products:
Our SNSC forklifts have different forklift series that can meet our
customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
If you have interests in our forklift, welcome you to contact
Nicole.
