Successful Export Cases for SNSC FB35 3.5 ton electric forklift
truck

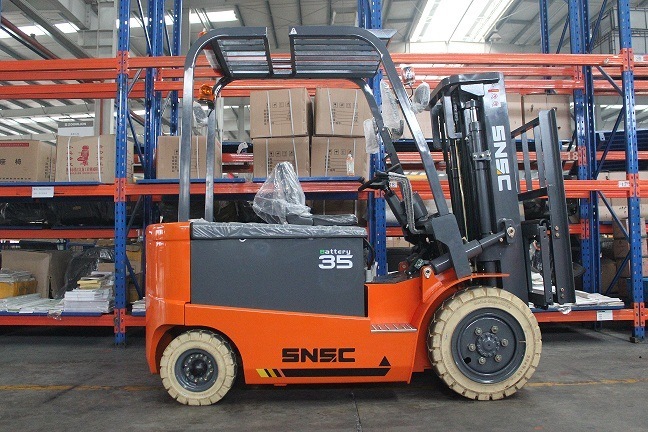

In Dec. 2015 year, 2units SNSC FB35 model 3.5ton electric forklift
were exported to Uzbekistan,
with yellow color solid tires, triplex full free 4.2m lifting
height, side shifter and warning light.
2 units FB35 forklifts can be packaged into a 20'GP container.
Customer satisfied our forklifts very much.
Main Features for SNSC brand 4 wheel battery power 3.5 ton electric
forklift trucks
1) with full electric AC control, free maintenance battery;
2) with JAPANESE hydraulic system, like JAPAN SHIMADZU brand
hydraulic pump and muti-way control valves, which can guarantee our
snsc 3.5t forklift's best performance;
3) installed USA EATON brand steering gear, which makes our snsc
forklift have longer working life;
4) with imported USA CURTIS controller;
5) We can do all kinds of lifting height and masts according to
customer's requirments, like: duplex full free 3m mast, triple full
free 4.5m mast, triplex full free 5m mast, triplex full free 6m
mast.
6) with chinese top brand LISHI brand battery, and GERMANY HOPPECKE
battery for your choice.
7) Chinese best quality SHANGHAI SHINENG brand charger is included
in our 3.5ton electric forklift truck.
8) SNSC electric forklift truck can install different attachments
to help your work, like side shifter, rotators, tyre clamps,
material sender, fork clamp, drum clamp, lifting arm, paper roll
clamp, full free container mast, bale clamp, carton clamp, block
clamp, cabin, etc.
Specifications of SNSC 3.5 ton battery power electric forklift
truck This is our standard 3.5ton electric forklift techincal
specifications.
We also can customize forklift according to our customer's demands
and working conditions.
| SPECIFICATIONS of SNSC STANDARD FB35 3.5ton EIECTRIC FORKLIFT |
|
| No. | Specifications | Unit | FB35 |
| 1 | Characteristics | Power | | battery |
| 2 | Capacity | kg | 3500 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 150 |
| 6 | Forks L×W×H | mm | 1070x125x50 |
| 7 | Mast tilt angle Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 2385 |
| 9 | Min. right angle stacking width | mm | 4065 |
| 10 | Min. right angle Aisle width | mm | 2290 |
| 11 | Min.ground clearance | mm | 120 |
| 12 | Overhead guard height | mm | 2300 |
| 13 | Height from seat to overhead guard | mm | 1100 |
| 14 | Front overhang | mm | 485 |
| 15 | Perf | Max.traveling speed(loaded) | km/h | 13 |
| 16 | Max.lifting speed(loaded) | mm/s | 280 |
| 17 | Gradeability | % | 12 |
| 18 | Dimensions | Overall length (without fork) | mm | 2630 |
| 19 | Overall width | mm | 1225 |
| 20 | Mast extended height(with bracket) | mm | 4264 |
| 21 | Mast lowered height | mm | 2095 |
| 22 | Chassis | Tire | Front | | 28x9-15 |
| 23 | Front | | 28x9-15 |
| Rear | | 18x7-8 |
| 25 | Wheelbase | mm | 1720 |
| 26 | Tread width | Front/Rear | mm | 1000/980 |
| 27 | Curb weight | None-load | kg | 5300 |
| 28 | Powertrain | Battery | Voltage/Capacity | V/Ah | 80/560 |
| 29 | Motor | Traveling | KW | 12 |
| 30 | Lifting | KW | 14 |
| 31 | Controller | CURTIS |
| 32 | Control type | 100%AC |
| 33 | Working pressure | Mpa | 17.5 |
Our SNSC FORKLIFT TRUCKS Factory Strength Introduction
We, SNSC fork lifter factory, are top 3 forklift montacargas
manufactures and top 20 in the world. with 130,000 square meters
production area, over 500 employees,30,000 units forklifter diesel
truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality forklift trucks to our
customers from all over the world.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our
customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;
(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
If you have interests in our snsc forklift, welcome you to contact
Nicole
