Supply Ability : | 500/Months |
Brand Name : | snsc |
Certification : | CE/ISO |
Price : | negotiable |
Delivery Time : | 30-45 Days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
1) Our 2.0tons electric forklift truck equip with full electric AC brushless, maintenance-free, and low cost.
2) 2.0t battery powered electrical forklift lifter truck with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 2t forklift's best performance;
3) SNSC 2ton electrical lifter truck forklift installed famouse USA
EATON brand steering gear, which makes our snsc forklift have
longer working life;
4) Our SNSC FB20 2ton electric forklift equips with imported USA
CURTIS controller;
5) We can do all kinds of lifting height and masts according to
customer's requirments, like: duplex full free 3m mast, triple full
free 4.5m mast, triplex full free 5m mast, triplex full free 6m
mast.
6) Our SNSC 2.0ton electric forklift use chinese top brand LISHI
brand battery, and GERMANY HOPPECKE battery for your choice.
7) Chinese best quality SHANGHAI SHINENG brand charger is included in our 2ton electric forklift truck.
8) SNSC electric forklift truck can install different attachments
to help your work, like side shifter, rotators, tyre clamps,
material sender, fork clamp, drum clamp, lifting arm, paper roll
clamp, full free container mast, bale clamp, carton clamp, block
clamp, cabin, etc.
Specifications of SNSC 2.0 ton battery power electric forklift truck
This is our standard 2.0ton electric forklift techincal
specifications.
We also can customized the fork lifter according to our customer's
demands and working conditions.
SNSC STANDARD FB20 2TON EIECTRIC FORKLIFT SPECIFICATIONS | ||||||
No. | Specifications | Unit | FB20 | |||
1 | Characteristics | Power | battery | |||
2 | Capacity | kg | 2000 | |||
3 | Center of load | mm | 500 | |||
4 | Lifting height | mm | 3000 | |||
5 | Free lifting height | mm | 145 | |||
6 | Forks L×W×H | mm | 1070×122×40 | |||
7 | Mast tilt angle Forward/Backward | . | 6/12 | |||
8 | Min.turning radius | mm | 2090 | |||
9 | Min. right angle stacking width | mm | 3760 | |||
10 | Min. right angle Aisle width | mm | 2040 | |||
11 | Min.ground clearance | mm | 110 | |||
12 | Overhead guard height | mm | 2150 | |||
13 | Height from seat to overhead guard | mm | 1005 | |||
14 | Front overhang | mm | 470 | |||
15 | Perf | Max.traveling speed(loaded) | km/h | 13 | ||
16 | Max.lifting speed(loaded) | mm/s | 280 | 300 | ||
17 | Gradeability | % | 15 | |||
18 | Dimensions | Overall length (without fork) | mm | 2310 | ||
19 | Overall width | mm | 1150 | |||
20 | Mast extended height(with bracket) | mm | 4030 | |||
21 | Mast lowered height | mm | 1990 | |||
22 | Chassis | Tire | Front | 7.00-12-12PR | ||
23 | Front | 7.00-12-12PR | ||||
Rear | 18×7-8-14PR | |||||
25 | Wheelbase | mm | 1450 | |||
26 | Tread width | Front/Rear | mm | 960/950 | ||
27 | Curb weight | None-load | kg | 3950 | ||
28 | Powertrain | Battery | Voltage/Capacity | V/Ah | 48/630 | |
29 | Motor | Traveling | KW | 11 | ||
30 | Lifting | KW | 10 | 14 | ||
31 | Controller | CURTIS | ||||
32 | Control type | 100%AC | ||||
33 | Working pressure | Mpa | 17.5 |
We, SNSC fork lifter factory, are top 3 forklift montacargas
manufactures and top 20 in the world. with 130,000 square meters
production area, over 500 employees,30,000 units forklifter diesel
truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are
responsible for our customers and forklifters.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality forklift trucks to our
customers from all over the world.

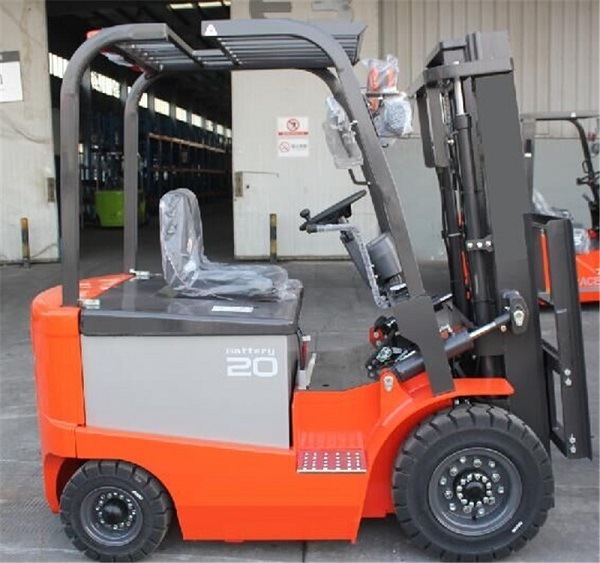

SNSC brand FB20 2.0tons BATTERY powered ELECTRIC FORKLIFT TRUCK
DELIVERY SOLUTIONS:
Our 2.0ton electrical forklift can be delivered by container or
ro-ro shipment.
One 20'GP containr can hold 3 units 2.0tons electric forklifts;
one 40'GP container can hold 6 units 2.0ton electric forklift
trucks.
Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our
customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to
10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to
3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift
trucks range from 1.5 to 3.5 ton;(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach
truck, electric stacker & electric trailer, scissor lift, double
deep electric reach truck, racks.
If you have interests in our snsc forklift, welcome you to contact Nicole
FAQ time:
1. Can you customize and design forklift truck as the clients'
requirement?
We will try its best to meet all kinds of clients' special
requirements. And for new products that have not been into the
market yet, we have our technical team to help the clients. All
kinds of attachments such as roll paper clamp, side shifter and so
on can be available.
2. How long is the warranty of your products?
All of forklifts warranty time is with 12 months / 2000 working
hours begins from the forklift arrival date of oversea subject to
the first.
3. Can you produce the products labeled with the client's brand?
Yes, we can! With the authorization of the brand, we can OEM for
our clients.
4.How we can get the forklift spare parts ?
We will be send you some wear spart part free for you when we
dilivery the forklift.
If needed urgent after sell, we will send you parts in 24 hours for
you.
5. What's the payment terms do you accept?
TT / LC or according customer's condition.
6. Delivery date?
If clients need normal products, we will deliver the products
within 25days.
If clients need customerized products, the delivery date depend on
the requirements.
![]() |
