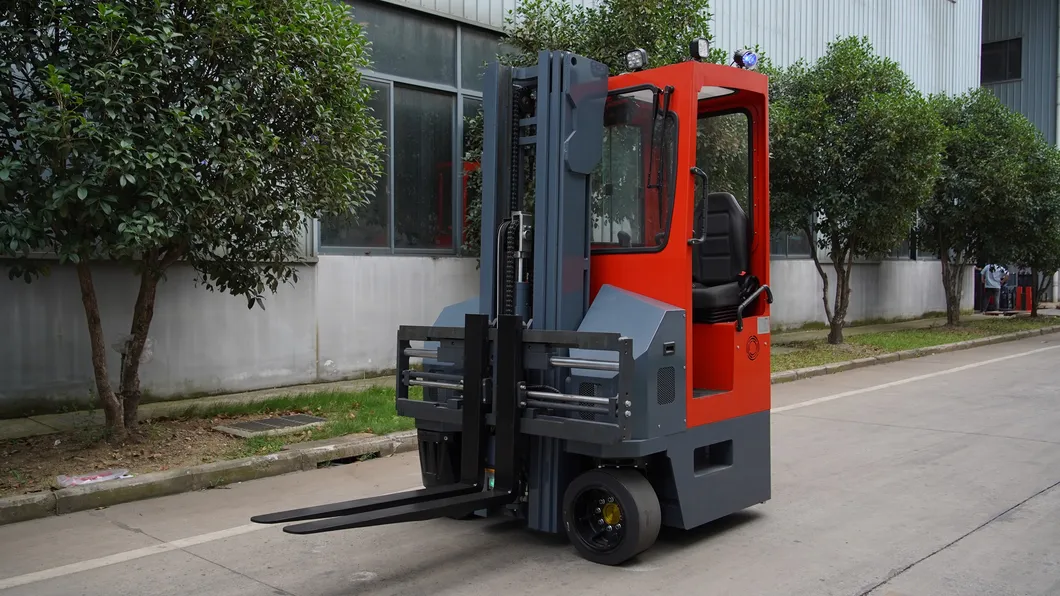

3000kg Counter Balance Multi-Directional Electric Forklift
The QK30 counterbalanced forklift has a 3ton load capacity and a tilting mast. It is equipped with fork positioner and a side shift function. The three-point design features dual front-wheel drive and independent control of all three wheels, allowing straight, sideways, diagonal traveling, right-angle turning, and in-situ rotation, providing high flexibility. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift
It requires narrow aisles for both sideways and straight traveling, making it ideal for stacking long materials in tight spaces. Compared to standard counterbalanced forklifts, it significantly reduces the right-angle stacking aisle width, offering excellent overall performance.3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-directional forklift
Applications: Stacking in narrow aisles; Outdoor bulk cargo yards; Handling long materials such as timber.
| Characteristics | 1.1 | Manufacturer | | |
| 1.2 | Model | | SNSC |
| 1.3 | Power Type | | Battery |
| 1.4 | Operation | | Seated |
| 1.5 | Load capacity | Q(kg) | 3000 |
| 1.6 | Load center disatnce | C(mm) | 500 |
| 1.7 | Distance from fork surface to front wheel center | x(mm) | 367 |
| 1.8 | Wheelbase | y(mm) | 1015 |
| Weights | 2.1 | Service Weight(incl.battery) | kg | 7900 |
| 2.2 | Axle loading, laden front/rear | kg | / |
| 2.3 | Axle loading, unladen front/rear | kg | / |
| Wheels | 3.1 | Tyre type,front/rear | | Solid rubber |
| 3.2 | Tyre size, rear | in/mm | 15×6-11.25/φ381×152 |
| 3.3 | Tyre size, front | in/mm | 18×9-12.125/φ457×229 |
| 3.4 | Balance wheel | mm | / |
| 3.5 | Wheels,number front/rear (X=driven) | | 2X/ 2 |
| 3.6 | Track width, front | b10(mm) | 1170 |
| 3.7 | Track width, rear | b11(mm) | / |
| Dimensions | 4.1 | Mast tilt angle front/rear | α/β(°) | 1/3.5 |
| 4.2 | Mast retarcted height | h1(mm) | 2735 |
| 4.3 | Free lift height | h2(mm) | 1375 |
| 4.4 | Lift height | h3(mm) | 6000 |
| 4.5 | Mast extended height | h4(mm) | 7360 |
| 4.7 | Cabin height (with/without light) | h6(mm) | 2650/2515 |
| 4.8 | Seat height | h7(mm) | 1340 |
| 4.9 | Support arms height | h8(mm) | / |
| 4.10 | Overall length | l1(mm) | 2520 |
| 4.11 | Overall width | b1(mm) | 1640 |
| 4.12 | Unladen in-situ rotation diameter(Fork outside spread: 460mm/1400mm) | WK(mm) | 2800/2900 |
| 4.13 | Fork dimensions | l/e/s(mm) | 920/150/50 |
| 4.14 | Fork carriage width | b5(mm) | 1600 |
| 4.15 | Fork outside spread | b3(mm) | 460~1400 |
| 4.16 | Reach distance | b4(mm) | ±100 |
| 4.17 | Body to fork surface length | l2(mm) | 1600 |
| 4.18 | Ground clearance, body laden/unladen | ml(mm) | 95/100 |
| | 4.19 | Min. ground clearance laden/unladen | m2(mm) | 70/75 |
| Performance | 5.1 | Sideways travelling speed, laden/unladen | km/h | 7~8 |
| 5.2 | Straight Sideways travelling speed, laden/unladen | km/h | 9~10 |
| 5.3 | Lift speed, laden/unladen | mm/s | 220/350 |
| 5.4 | Lowering speed, laden/unladen | mm/s | 360/260 |
| 5.5 | Gradeability, laden/unladen(S2-5min) | %(tanθ ) | 10/10 |
| 5.6 | Sideways driving gradeability, laden/unladen(S2-5min) | %(tanθ ) | 10/10 |
| 5.7 | Service Brake | | Electromagnetic |
| Drive | 6.1 | Drive motor, rating S2=60 | kw | 7AC |
| 6.2 | Lift motor, rating S3=15% | kw | 12.8AC |
| 6.3 | Lithium battery voltage/nominal capacity | V/Ah | 48/600 |
| 6.4 | Battery weight | kg | 428-472 |
| 6.5 | Steering system | | EPS |
| Others | 7.1 | Battery replacement method | | Hoisting |
| | | | |
| | | | |
Counter Blance Multi-directional Forklift Product Details
1. Full AC system with free maintenance; 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 2. Imported gear box pump, with stability and low noise; 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3. Japanese hydraulic pipes, with wear resistance, tensile strength and longer service life; 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 4.Ensuring Safety in all aspects with function of turning speed limit, high position speed limit, mast buffering and slope anti-skid; 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric 5. EPS steering+one switch change mode+multi-functional instrument with driving wheel position display+soft cushion,; 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric 6. Side pull design, making battery maintenance easy. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift
SNSC 3000kg multi-directiona Electric Forklift is shipped by container. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional
Packaging&Shipping 1*20'GP - 2Units, 1*40'GP - 3 Units. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift

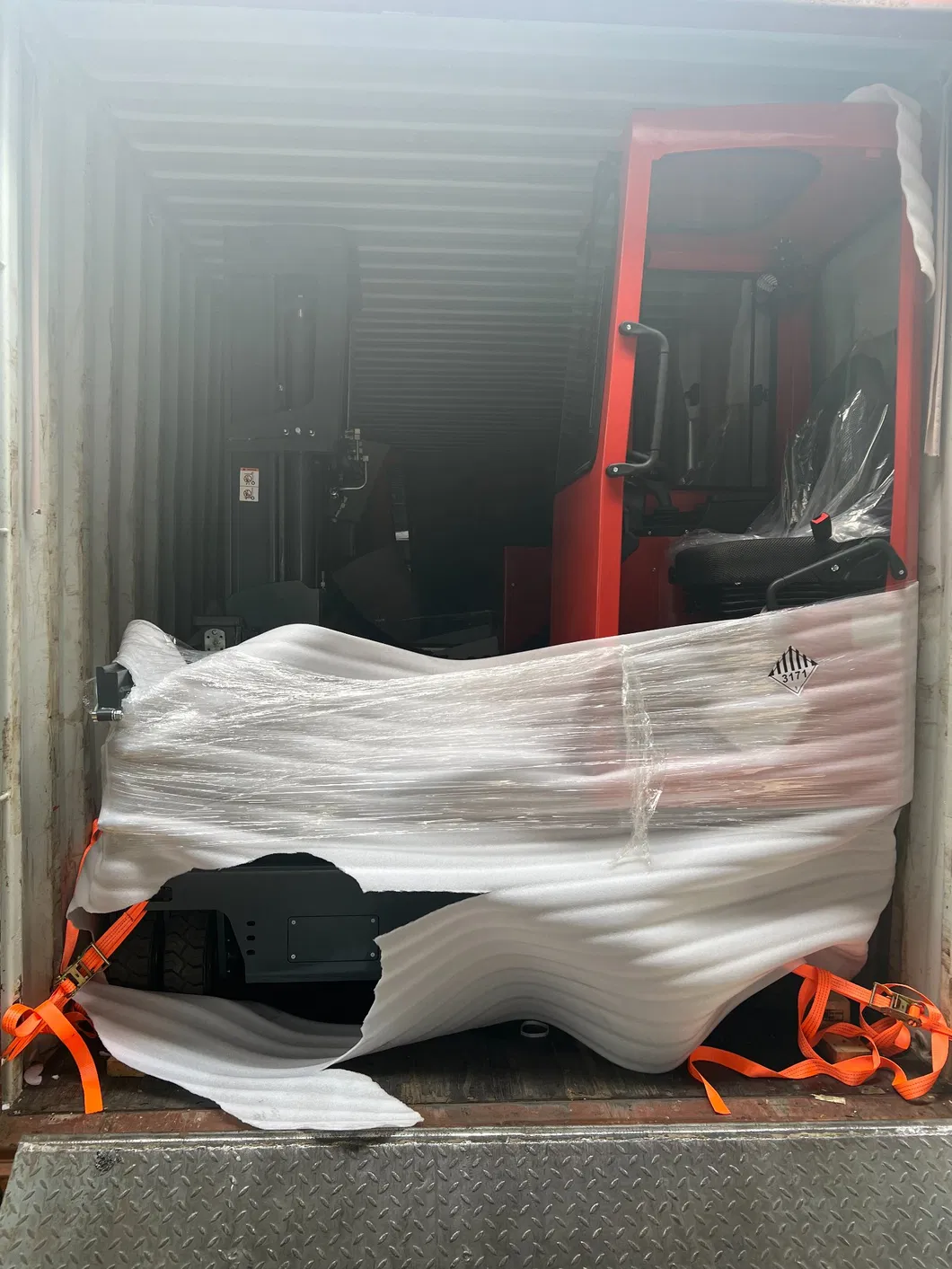

Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals and Spare Parts together. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklif
Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift
We have all kinds of electric forklift and warehouse equipment: multi-direction forklift multi-direction forklift multi-forklift
-1.5-12 Ton Four wheels electric forklift; counter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truck
-1.6-2Ton three wheels electric forklift; multi-direction forklift multi-direction forklift multi-direction forklift forklift truck 3000kg multi-directional forklift
-1-1.5ton VNA forklift;counter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truck
-1.2-3ton Reach truck;counter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truck
-2.5-5Ton multi-direction forkliftmulti-direction forklift;counter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truck
-1.5-10ton Ware house equipment Electric Pallet truck, Electric stacker, electric tower, electric trailer ect .counter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truckcounter balance multi-direction forkliftmulti-direction forklift multi-direction forklift forklift truck

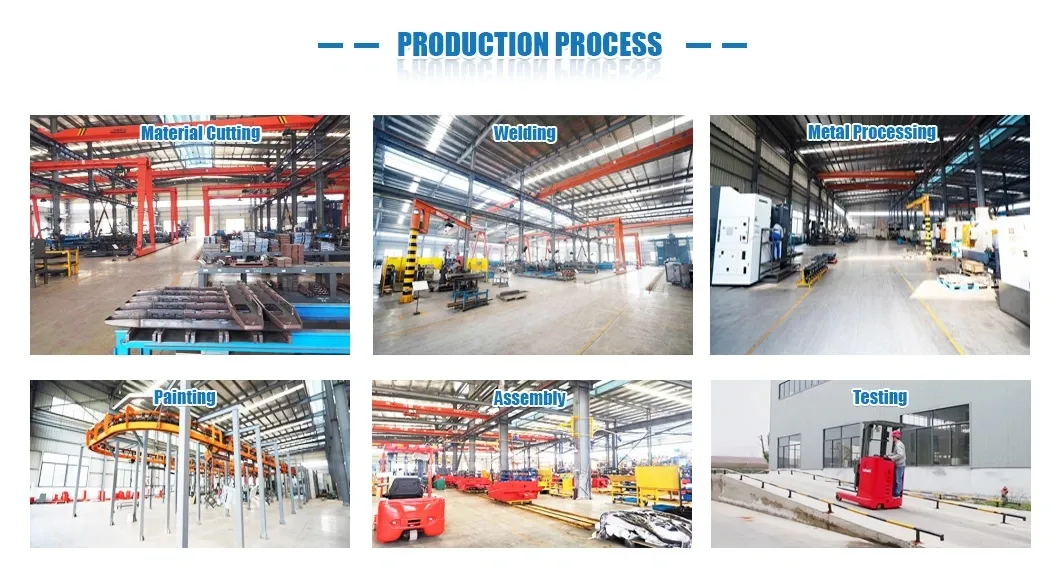

We are first calss in Chinese forklift truck manufactures with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume. 3000kg Counter Balance Multi-Directional Electric Forklift3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift 3000kg Counter Balance Multi-Directional Electric Forklift
