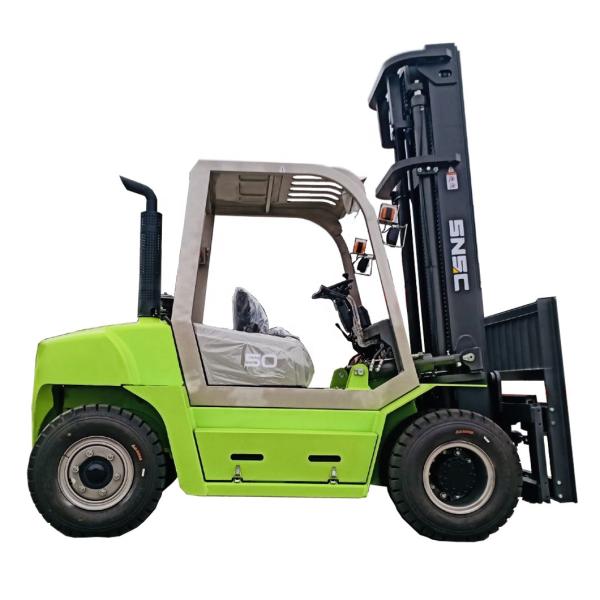

5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

Jinan Shine International Trade Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty from wholesalers

    Buy cheap 5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty from wholesalers
    • Buy cheap 5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty from wholesalers

    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Ask Lasest Price
    Brand Name : SNSC
    Model Number : FD20
    Certification : CE
    Price : USD6000-10000
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 100 set per month
    Delivery Time : 15-40 work days
    • Product Details
    • Company Profile

    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Product Description
    SNSC Diesel Forklift Truck 5Ton for sale
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

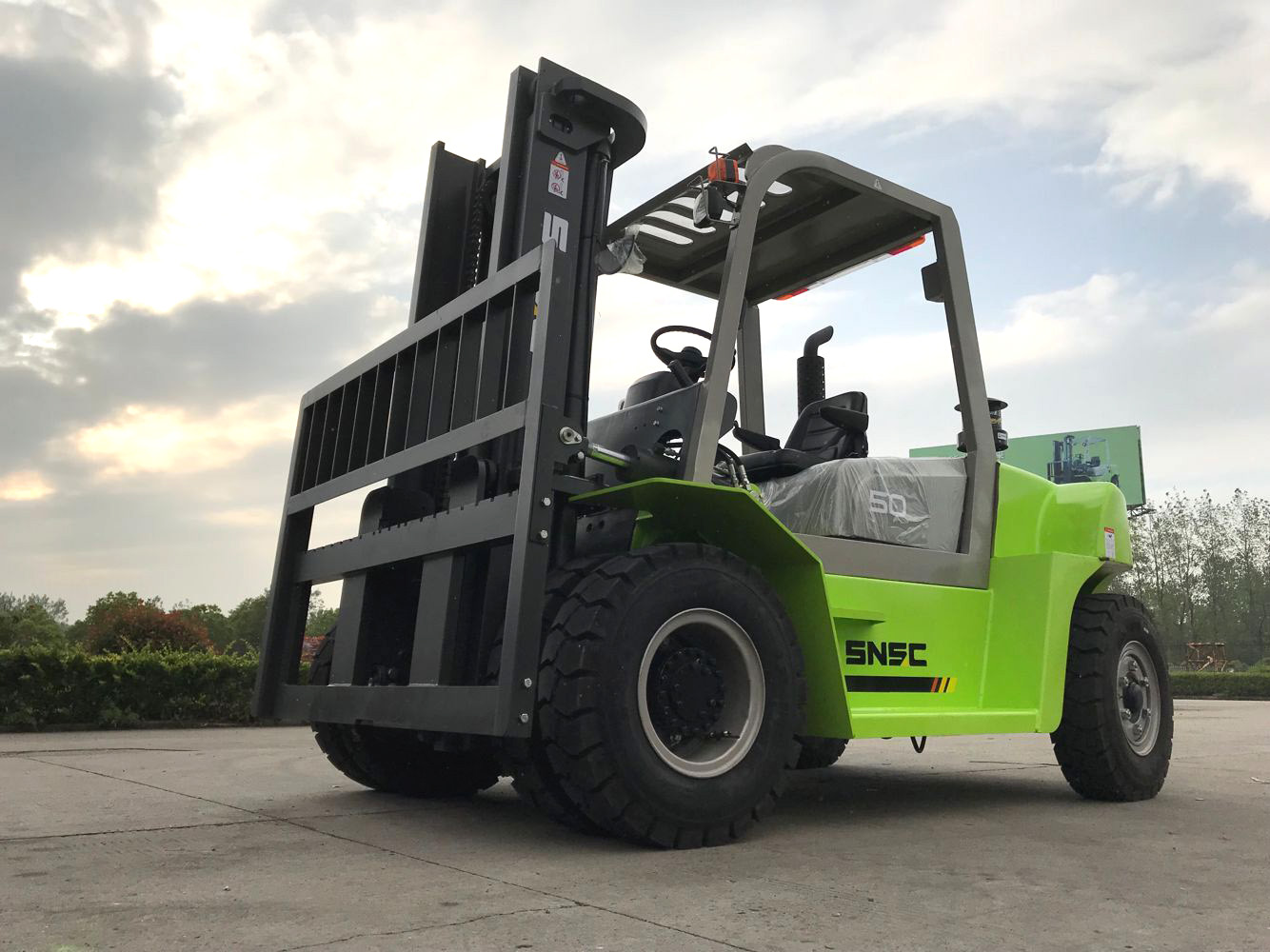

    FD50 Heavy Duty Diesel Forklift Truck 5Ton
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Heavy duty 5 ton forklift diesel forklift truck price
    Specifications
    Unit
    FD50
    FD60
    FD70
    1
    Features
    Power type
    -
    Diesel
    Diesel
    Diesel
    2
    Rated load
    kg
    5000
    6000
    7000
    3
    Load center
    mm
    600
    600
    600
    4
    Lifting Height
    mm
    3000
    3000
    3000
    5
    Free lifting height
    mm
    203
    208
    218
    6
    Fork size
    LxWxT
    mm
    1220X150X55
    1220X150X60
    122X150X70
    7
    Mast Tilt Angle
    Front/Rear
    °
    6/12
    6/12
    6/12
    8
    Min. Turning Radius
    mm
    3250
    3370
    3370
    10
    Min. Ground Clearance
    Mast
    mm
    200
    200
    200
    11
    Overhear Guard Height
    mm
    2460
    2460
    2460
    12
    Front Overhang
    mm
    610
    615
    625
    14
    Performances
    Max. Travelling Speed
    loaded
    Km/h
    26
    26
    26
    15
    Max. Lifting Speed
    loaded/empty
    mm/s
    370/450
    370/450
    370/450
    16
    Max. Traction Force
    loaded
    KN
    51.4
    51.4
    51.4
    17
    Max. Climbing Ability
    °
    20
    20
    20
    18
    Dimension
    Overall Length
    without fork
    mm
    3431
    3431
    3466
    19
    Overall Width
    mm
    2235
    2235
    2235
    20
    Mast Lowered Height
    mm
    2500
    2500
    2500
    21
    Mast Extended Height
    mm
    4417
    4417
    4417
    22
    Chassis
    Tyre
    Front
    -
    8.25-15-14PR
    8.25-15-14PR
    8.25-15-14PR
    23
    Rear
    -
    8.25-15-14PR
    8.25-15-14PR
    8.25-15-14PR
    24
    Wheel Base
    mm
    2250
    2250
    2250
    25
    Wheel Thread
    Front/Rear
    mm
    1470/1700
    1470/1700
    1470/1700
    26
    Weight(without load)
    kg
    7980
    8640
    9340
    27
    Powertrain
    Battery
    V/Ah
    (12/90)X2
    (12/90)X2
    (12/90)X2
    28
    Engine
    Model
    -
    CY6102BG6
    CY6102BG6
    CY6102BG6
    29
    Rated Power
    KW/r.p.m
    81/2500
    81/2500
    81/2500
    30
    Rated Torque
    N.m/r.p.m
    353/1700
    353/1700
    353/1700
    31
    No. of cylinder
    -
    6
    6
    6
    32
    Bore x Stroke
    mm
    102 x 118
    102 x 118
    102x118
    33
    Displacement
    L
    5.785
    5.785
    5.785
    34
    Fuel Tank Capacity
    L
    140
    140
    140
    35
    Transmission/Shift
    -
    1/1 Automatic transmission
    36
    Operation Pressure
    MPa
    20
    20
    20
    Detailed Images
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Chinese engine or Japanese Engine
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Auto Electric Hydraulic Transmission
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Waterproof Overhead Guard
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Suspension Seat with safety belt
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

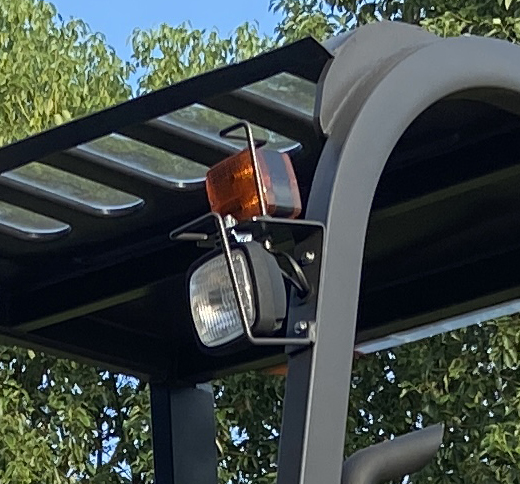

    LED Waring Light
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Light Protection Frame
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Double front tires

    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Triangle wider view back mirror
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

    Double filter+High position exhaust
    Optional Attachments
    SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
    bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Front Windscreen
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Side shifter
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Hydraulic fork postioning function
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Fully closed cabin with Air conditioner
    Quality Control
    SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
    Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Tilt angle test
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Wheel hug test
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Brake Line Test
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Climbing test
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Lifting Test
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Turning Test
    Successful Cases
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    SNSC --"Beyond your needs!"
    SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Isuzu engine diesel forklifts 5Ton to Peru
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Isuzu engine diesel forklift 5ton to Russia
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Mitsubishi engine 5ton diesel forklift to Poland
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Isuzu engine 5ton diesel forklift to Senegal
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

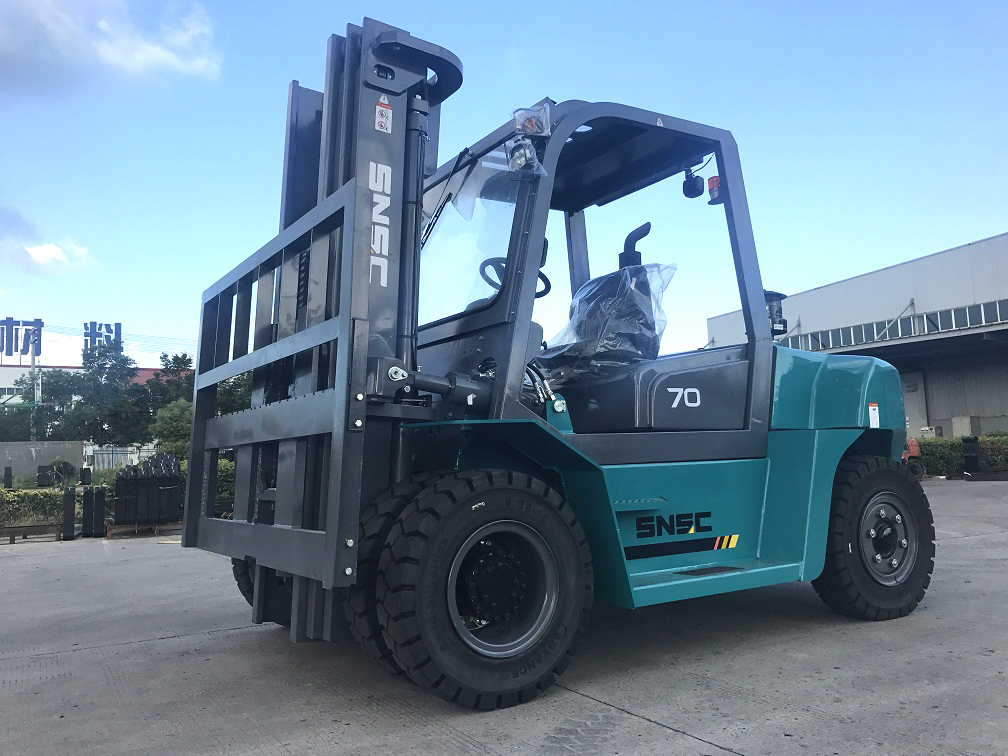

    Isuzu engine 7ton diesel forklift to Algeria
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Isuzu engine 7ton diesel forklift to Gambia
    Package and Delivery
    Heavy duty 5 ton forklift diesel forklift truck pricewith Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

    Packaging&Shipping For 5ton and 6ton, 1*40'HQ - 3 units.
    For 7ton, 1*40'HQ - 2 Units
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Our Factory
    We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

    our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

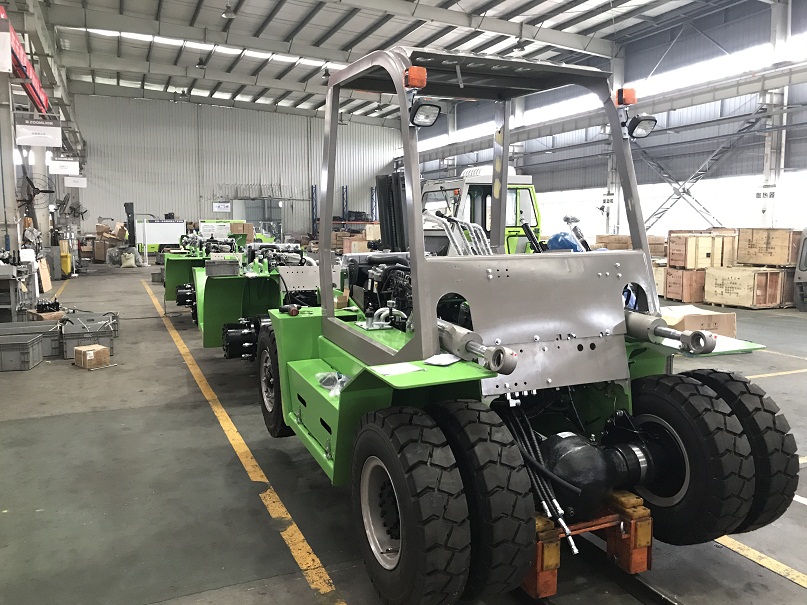

    Material Preparation Workshop
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Structure Workshop
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
    Painting Workshop
    5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty
